Part Number # PSTX105-690-70
SKU # 2465787
ABB PSTX105-690-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | PSTX105-690-70 |
| SKU #: | 2465787 |
| Dimensions: | 270 mm L x 186 mm W x 390 mm H |
| Enclosure Type: | NEMA 1/4X/12/IP10/20/66 |
| Full Load Current: | 104 A |
| Motor Power: | 55/75/90 kW |
| Series: | PST |
| Timing: | 1 to 30 s Start, 0 to 30 s Stop |
| Type: | Advanced Range |
| UNSPSC: | 39121521 |
| UPC: | 00066234809193 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB PSTX105-690-70
Brand: ABB
Part Number: PSTX105-690-70
Additional Description: ABB -PSTX105-690-70 (N) PSTX105, 690V, 100-250VAC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The softstarter PSTX105-690-70 has a rated maximum operational current of 105 A with an operating voltage span from 208...690 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RT
PSTX105-690-70 Item Features
- Both in-line and inside delta connection
- Coated circuit boards available for reliable operation even in harsh environments
- Full text display in 14 languages and 4-button keypad for easy set-up and operation
- Built-in by-pass contactor on PSTB (from 370 A) for energy saving and easy installation
- Prepared for external by-pass on PST (30 to 300 A)
- Torque control for excellent control of pumps
- Fieldbus communication using Profibus, Modbus, Devicenet or CANopen
- Dual motor overload protection with classes 10A, 10, 20 and 30
- Adaptable motor underload protection to detect pumps running dry
- Adaptable locked rotor protection to detect jammed pumps
- PTC protection to protect the motor from overheating
- Adjustable kick start to start jammed pumps
- Programmable output signal relays
- Programmable pre-warning functions
- Event log with time stamp
- Analog output showing current, voltage, power factor 0 to 10 V, 0 to 20 mA, 4 to 20 mA
- 55 kW at 400 V, 75 kW at 500 V, 90 kW at 690 V 3 ph motor power rating
PSTX105-690-70 Standards
UL 508|CSA C22.2 No. 14|CE Certified|cULus Listed|CCC Certified|EAC Certified|ANCE Certified|C-Tick Certified|ABS Approved|GL Approved|Lloyds Registered Approved|DNV Approved|CCS ApprovedSKU #2465787Part Number #PSTX105-690-70UNSPSC39121521UPC00066234809193

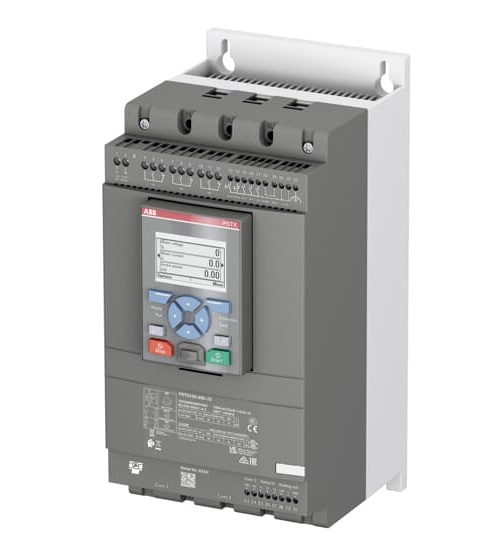

Image provided may only be a representation of final product and may include optional equipment
