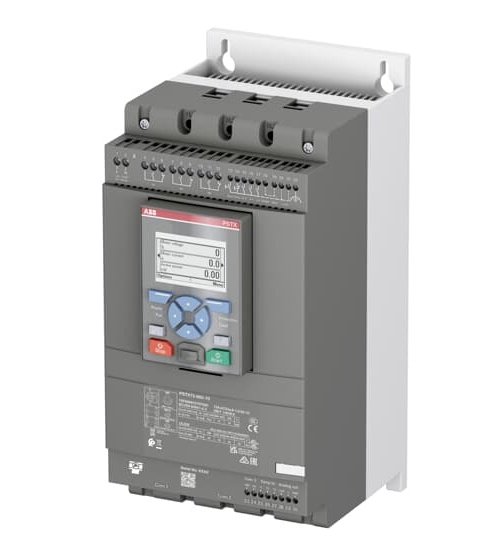

ABB PSTX72-600-70 Softstarter
Part Number # PSTX72-600-70
SKU # 2307710
$2264.40 / Each
ABB PSTX72-600-70 Key Features
Brand: ABB
Part Number # PSTX72-600-70
SKU #2307710
Action: STOP/START
Amperage Rating: 72 A
Coil Voltage: 100 to 250 VAC
Control Type: Electronic
Dimensions: 198 mm L x 150 mm W x 314 mm H
Enclosure Type: NEMA 1/4X/12/IP10/IP20/IP66
Frequency Rating: 50/60 Hz
Full Load Current: 117 A
Motor Power: 18.5/37/45 kW
Operating Temperature: -25 to 60 deg C
Overload Relay: Class 10
Phase: 3
Series: PSTX
Type: Advanced Range Inside-the-delta
Voltage Rating: 208 to 600 VAC
Connection type: In-Line
Manufacturer Name: ABB
UNSPSC: 39121521
UPC: 00888614237056
$2264.40 / Each
- ABB Soft Starter, Advanced Range Inside-the-delta, Series: PSTX, 208 to 600 VAC, 72 A, 50/60 Hz Frequency, 18.5/37/45 kW Motor, 100 to 250 VAC Coil, 3 ph, In-Line Connection, STOP/START Action, Class 10 Overload Relay, 117 A Full Load, Electronic Control, NEMA 1/4X/12/IP10/IP20/IP66 Enclosure, -25 to 60 deg C Operating, 198 mm L x 150 mm W x 314 mm H Dimensions
PSTX72-600-70 Application
Bow Thruster, Centrifugal Pump, Compressor, Short Conveyor Belt, Elevator and EscalatorPSTX72-600-70 Item Features
- Both in-line and inside-delta connection
- Coated circuit boards protecting from dust, moist and corrosive atmosphere
- Graphical display with 15 languages for easy setup and operation
- Built-in bypass for energy saving and easy installation
- Built-in Modbus RTU for monitoring and control
- Support for all major communication protocols
- Analog output for measurement of current, voltage, power factor and more
- 18.5 kW at 230 V, 37 kW at 400 V, 45 kW at 500 V in-line connection
PSTX72-600-70 Standards
EN 60529|IEC 60529|IEC 60947-1SKU #2307710Part Number #PSTX72-600-70UNSPSC39121521UPC00888614237056
