Brand: ABB

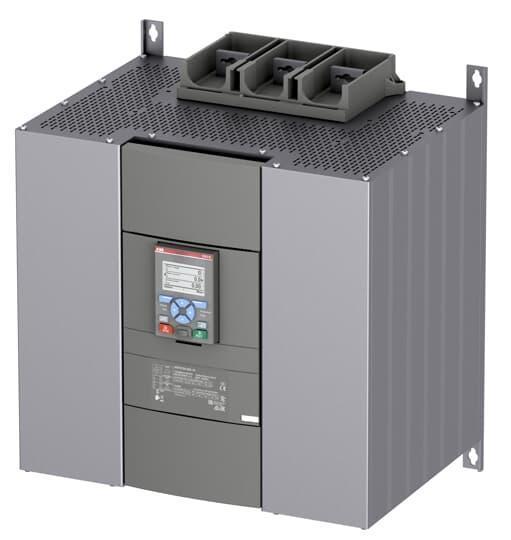

ABB PSTX720-600-70 Motor Starter Control
Part Number # PSTX720-600-70
SKU # 2310425
$12427.91 / Each
ABB PSTX720-600-70 Key Features
Brand: ABB
Part Number # PSTX720-600-70
SKU #2310425
Action: STOP/START, Start/Stop
Amperage Rating: 720, 720 A
Coil Voltage: 100 to 250, 100 to 250 VAC
Control Type: Electronic
Dimensions: 369 mm L x 435 mm W x 493 mm H
Enclosure Type: NEMA 1/4X/12/IP00/IP20/IP66
Frequency Rating: 50/60, 50/60 Hz
Full Load Current: 1247, 1247 A
Motor Power: 200/400/500, 200/400/500 kW
Operating Temperature: -25 to 60, -25 to 60 deg C
Overload Relay: Class 10
Phase: 3
Series: PSTX
Type: Advanced Range Inside-the-delta
Voltage Rating: 208 to 600, 208 to 600 VAC
Connection type: In-Line
Manufacturer Name: ABB
UNSPSC: 39121521
UPC: 00888614461451
$12427.91 / Each
- ABB Soft Starter, Advanced Range Inside-the-delta, Series: PSTX, 208 to 600 VAC, 720 A, 50/60 Hz Frequency, 200/400/500 kW Motor, 100 to 250 VAC Coil, 3 ph, In-Line Connection, STOP/START Action, Class 10 Overload Relay, 1247 A Full Load, Electronic Control, NEMA 1/4X/12/IP00/IP20/IP66 Enclosure, -25 to 60 deg C Operating, 369 mm L x 435 mm W x 493 mm H Dimensions
PSTX720-600-70 Application
Bow Thruster, Centrifugal Pump, Compressor, Short Conveyor Belt, Elevator and EscalatorPSTX720-600-70 Item Features
- Both in-line and inside-delta connection
- Coated circuit boards protecting from dust, moist and corrosive atmosphere
- Graphical display with 15 languages for easy setup and operation
- Built-in bypass for energy saving and easy installation
- Built-in Modbus RTU for monitoring and control
- Support for all major communication protocols
- Analog output for measurement of current, voltage, power factor and more
- 200 kW at 230 V, 400 kW at 400 V, 500 kW at 500 V in-line connection
PSTX720-600-70 Standards
EN 60529|IEC 60529|IEC 60947-1SKU #2310425Part Number #PSTX720-600-70UNSPSC39121521UPC00888614461451
