Part Number # PSTX840-690-70
SKU # 2408750
Image Disclaimers Message
PSTX840-690-70

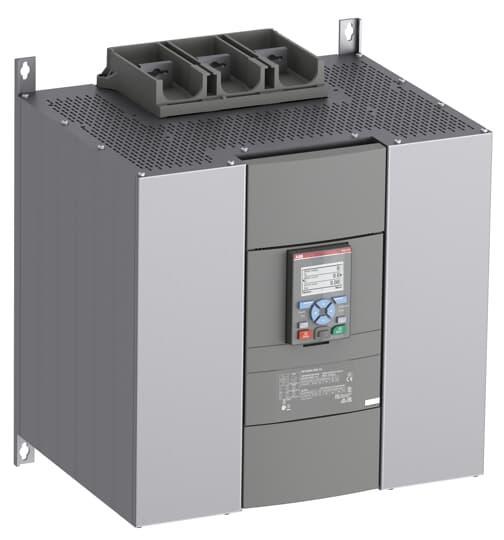

ABB PSTX840-690-70 Soft Starter
Part Number # PSTX840-690-70
SKU # 2408750
$20879.19 / Each
ABB PSTX840-690-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | PSTX840-690-70 |
| SKU #: | 2408750 |
| Amperage Rating: | 840 A |
| Coil Voltage: | 100 to 250 V AC, 100 to 250 VAC |
| Dimensions: | 381 mm L x 436 mm W x 515 mm H |
| Enclosure Type: | NEMA 1/4X/12/IP00/20/66, NEMA 1/4X/12/IP00/IP20/IP66 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 840 A |
| Motor Power: | 450/600/800 kW |
| Operating Temperature: | -13 to 140 deg F |
| Overload Relay: | Class 10 |
| Phase: | 3 |
| Series: | PST |
| Timing: | 1 to 30 s Start, 0 to 30 s Stop |
| Type: | Advanced Range |
| Connection type: | In-Line Screw |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 00066234809213 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$20879.19 / Each
Quantity:
- ABB Soft Starter, Advanced Range, Series: PST, 208 to 690 V AC, 840 A, 50/60 Hz Frequency, 450/600/800 kW Motor, 100 to 250 VAC Coil, 1 to 30 s Start, 0 to 30 s Stop Timing, 3 ph, In-Line Screw Connection, Class 10 Overload Relay, 840 A Full Load, NEMA 1/4X/12/IP00/20/66 Enclosure, -13 to 140 deg F Operating, 381 mm L x 436 mm W x 515 mm H Dimensions
PSTX840-690-70 Item Features
- Both in-line and inside delta connection
- Coated circuit boards available for reliable operation even in harsh environments
- Full text display in 14 languages and 4-button keypad for easy set-up and operation
- Built-in by-pass contactor on PSTB (from 370 A) for energy saving and easy installation
- Prepared for external by-pass on PST (30 to 300 A)
- Torque control for excellent control of pumps
- Fieldbus communication using Profibus, Modbus, Devicenet or CANopen
- Dual motor overload protection with classes 10A, 10, 20 and 30
- Adaptable motor underload protection to detect pumps running dry
- Adaptable locked rotor protection to detect jammed pumps
- PTC protection to protect the motor from overheating
- Adjustable kick start to start jammed pumps
- Programmable output signal relays
- Programmable pre-warning functions
- Event log with time stamp
- Analog output showing current, voltage, power factor 0 to 10 V, 0 to 20 mA, 4 to 20 mA
- 450 kW at 400 V, 600 kW at 500 V, 800 kW at 690 V 3 ph motor power rating
PSTX840-690-70 Standards
UL 508|CSA C22.2 No. 14|CE Certified|cULus Listed|EAC Certified|ANCE Certified|C-Tick CertifiedSKU #2408750Part Number #PSTX840-690-70UNSPSC39121521UPC00066234809213
