Brand: ABB

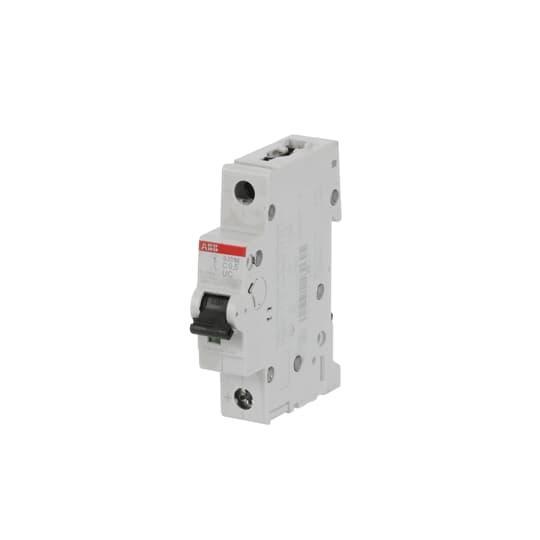

ABB S201MUC-C0.5 System pro M Miniature Circuit Breaker
Part Number # S201MUC-C0.5
SKU # 2356297
$77.19 / Each
ABB S201MUC-C0.5 Key Features
Brand: ABB
Part Number # S201MUC-C0.5
SKU #2356297
Amperage Rating: 0.5, 0.5 A
Dimensions: 69 mm L x 17.5 mm W x 88 mm H
Enclosure Type: IP20/IP40
Frequency Rating: 50 to 60, 50 to 60 Hz
Insulation Type: Class II
Interrupt Rating: 10, 10 kA
Number of Poles: 1
Series: S200MUC
Temperature Rating (Degrees F): -25 to 55, -25 to 55 deg C
Trip Type: C-Curve/Thermal Magnetic, Thermal Magnetic/C-Curve
Type: High Performance
Voltage Rating: 277/480Y VAC/250/500 VDC
Wire Size: 14 to 4, 14 to 4 AWG
Color: Light gray
Connection type: Screw
Country of origin: DE
Mounting type: DIN Rail
Manufacturer Name: ABB
UNSPSC: 39121603
UPC: 04013614430695
$77.19 / Each
- ABB System pro M compact, S201MUC-C0.5, Miniature Circuit Breaker, High Performance, Series: S200MUC, 277/480Y VAC/250/500 VDC, 0.5 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 1 Pole, Screw Connection, 14 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 88 mm H Dimensions, Light Gray
S201MUC-C0.5 Application
For dupplementary protective devices, protection and control of the circuits against overloads and short-circuitsS201MUC-C0.5 Item Features
- Equipped with permanent magnets that assist in the forced extinguishing of the arc
- Auxiliary contact
- Failsafe bi-directional cylinder-lift terminal
- High performance MCB provides compact supplementary, energy limiting, circuit protection
S201MUC-C0.5 Standards
UL 1077|CSA C22.2 No. 235|UL 1077|CSA C22.2 File No. 235SKU #2356297Part Number #S201MUC-C0.5UNSPSC39121603UPC04013614430695
