Part Number # S201MUC-K2
SKU # 2318635
Image provided may only be a representation of
final product and may include optional equipment
S201MUC-K2

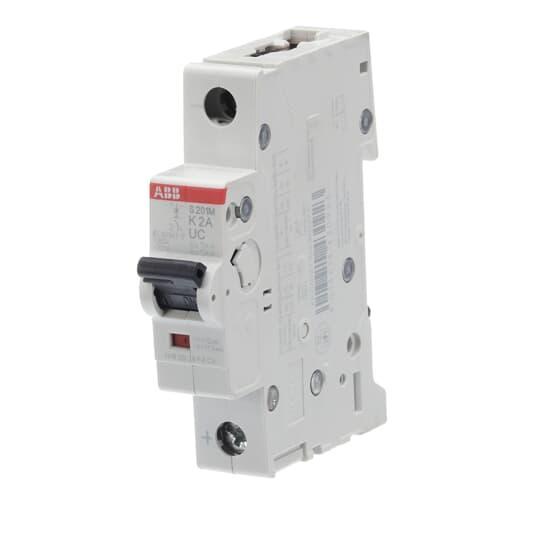

ABB S201MUC-K2 Miniature Circuit Breaker
Part Number # S201MUC-K2
SKU # 2318635
ABB S201MUC-K2 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S201MUC-K2 |
| SKU #: | 2318635 |
| Amperage Rating: | 2, 2 A |
| Dimensions: | 69 mm L x 17.5 mm W x 88 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 1 |
| Series: | S200MUC |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | K-Curve/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04013614430923 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB S201MUC-K2 Miniature Circuit Breaker
Brand: ABB
Part Number: S201MUC-K2
ABB Miniature Circuit Breaker, High Performance, Series: S200MUC, 277/480Y VAC, 250/500 VDC, 2 A, 50/60 Hz Frequency, 10 kA Interrupt, K-Curve/Thermal Magnetic Trip, 1 Pole, Screw Connection, 14 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 88 mm H Dimensions, Light Gray
Additional Description: ABB -S201MUC-K2 MCB S200MUC 1P K 2A AC/DC
Catalog Description: All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution.
S201MUC-K2 Application
For supplementary protective devices, protection and control of the circuits like motors, transformers and auxiliary circuits against overloads and short-circuitsS201MUC-K2 Item Features
- Equipped with permanent magnets that assist in the forced extinguishing of the arc
- Auxiliary contact
- Failsafe bi-directional cylinder-lift terminal
- High performance MCB provides compact supplementary, energy limiting, circuit protection
S201MUC-K2 Standards
CSA 22.2 No. 235 / IEC/EN 60947-2 / UL 1077SKU #2318635Part Number #S201MUC-K2UNSPSC39121603UPC04013614430923
