Part Number # S201UDC-K4
SKU # 2193605
Image Disclaimers Message
Brand: ABB
S201UDC-K4

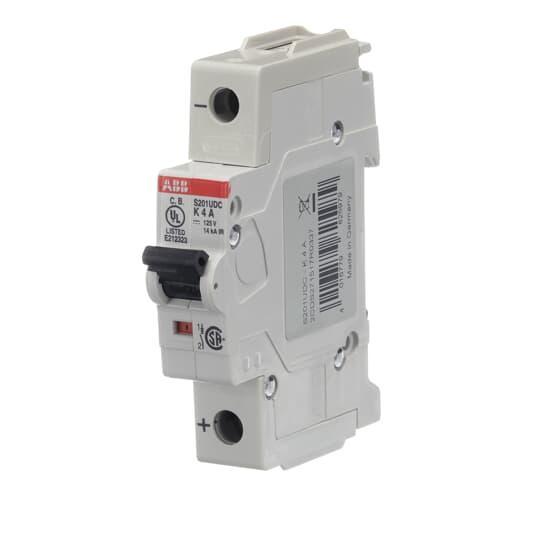

ABB S201UDC-K4 Miniature Circuit Breaker
Part Number # S201UDC-K4
SKU # 2193605
$59.70 / Each
Typical price:$158.46 / Each
ABB S201UDC-K4 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S201UDC-K4 |
| SKU #: | 2193605 |
| Amperage Rating: | 4, 4 A |
| Dimensions: | 71 mm L x 17.5 mm W x 92 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 14, 14 kA |
| Number of Poles: | 1 |
| Series: | S200UDC |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | Electro-Mechanic/K-Curve/Thermal Magnetic, K-Curve/Electromechanic/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779825979 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$59.70 / Each
Typical price:$158.46 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: S200UDC, 60/125 VDC, 4 A, 50/60 Hz Frequency, 14 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 17.5 mm W x 92 mm H Dimensions
S201UDC-K4 Application
For allowing higher in-rush current during system start-up example motors and transformer applicationsS201UDC-K4 Item Features
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Finger-safe and multi-function terminals
- Electromechanic tripping mechanism for short circuit protection
- Auxiliary contact
S201UDC-K4 Standards
UL 489SKU #2193605Part Number #S201UDC-K4UNSPSC39121603UPC04016779825979
