S201UDC-Z3

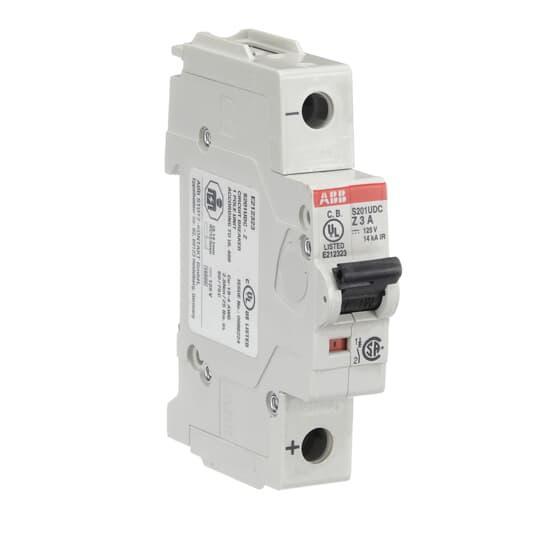

ABB S201UDC-Z3 System pro M Miniature Circuit Breaker
Part Number # S201UDC-Z3
SKU # 2269448
$63.01 / Each
Typical price:$167.26 / Each
ABB S201UDC-Z3 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S201UDC-Z3 |
| SKU #: | 2269448 |
| Amperage Rating: | 3, 3 A |
| Dimensions: | 71 mm L x 17.5 mm W x 92 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 14, 14 kA |
| Number of Poles: | 1 |
| Series: | S200UDC |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | K-Curve/Electromechanic/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779826167 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.01 / Each
Typical price:$167.26 / Each
Quantity:
- ABB System pro M compact, S201UDC-Z3, Miniature Circuit Breaker, High Performance, Series: S200UDC, 60/125 VDC, 3 A, 50/60 Hz Frequency, 14 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 17.5 mm W x 92 mm H Dimensions
S201UDC-Z3 Application
Use to provide maximum protection with a very low short circuit trip setting example semiconductors and control circuitsS201UDC-Z3 Item Features
- Auxiliary contact
- Electromechanic tripping mechanism for short circuit protection
- Finger safe and multi-function terminals
- High performance MCB provides compact supplementary, energy limiting, circuit protection
S201UDC-Z3 Standards
UL 489SKU #2269448Part Number #S201UDC-Z3UNSPSC39121603UPC04016779826167
