Brand: ABB
S202MR-K1

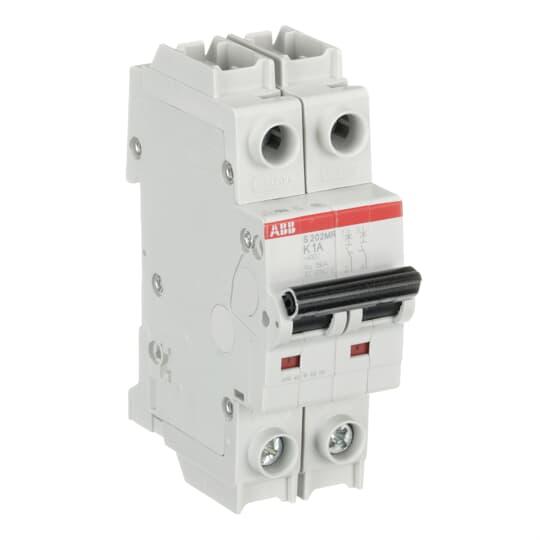

ABB S202MR-K1 Miniature Circuit Breaker
Part Number # S202MR-K1
SKU # 2362414
$80.75 / Each
Typical price:$214.35 / Each
ABB S202MR-K1 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S202MR-K1 |
| SKU #: | 2362414 |
| Amperage Rating: | 1 A |
| Dimensions: | 71 mm L x 35 mm W x 100 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 277/480Y VAC |
| Number of Poles: | 2 |
| Series: | S200MR |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | K, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Double Clamped/Ring Cable Lug |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779957755 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$80.75 / Each
Typical price:$214.35 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: S200MR, 400 V AC, 1 A, 50/60 Hz Frequency, 10 kA at 277/480Y V AC Interrupt, Thermal Magnetic Trip, 2 Pole, Double Clamped/Ring Cable Lug Connection, 18 to 4 AWG Wire, Group I Insulation, IP20/IP40 Enclosure, 35 mm DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 35 mm W x 100 mm H Dimensions
S202MR-K1 Standards
CSA 22.2 File No. 235|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2362414Part Number #S202MR-K1UNSPSC39121603UPC04016779957755
