Part Number # S202MUC-B63
SKU # 2338094
Image Disclaimers Message
Brand: ABB
S202MUC-B63

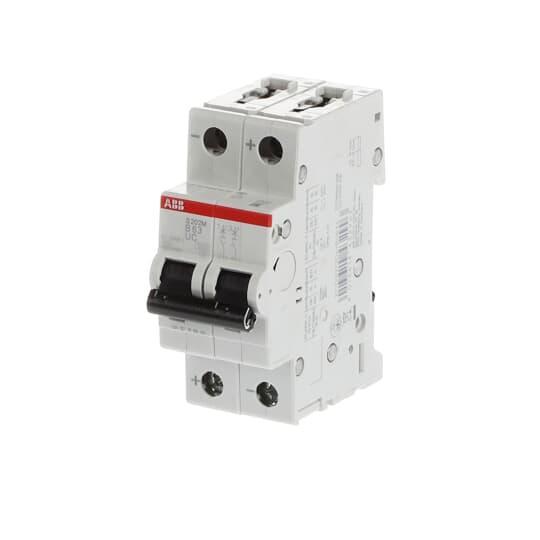

ABB S202MUC-B63 System pro M Miniature Circuit Breaker
Part Number # S202MUC-B63
SKU # 2338094
$258.16 / Each
Typical price:$757.32 / Each
ABB S202MUC-B63 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S202MUC-B63 |
| SKU #: | 2338094 |
| Amperage Rating: | 63, 63 A |
| Dimensions: | 69 mm L x 35 mm W x 88 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 2 |
| Series: | S200MUC |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | B-Curve Thermal Magnetic, B-Curve/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 14 to 4, 14 to 4 AWG |
| Color: | Light gray |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04013614432903 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$258.16 / Each
Typical price:$757.32 / Each
Quantity:
- ABB System pro M compact, S202MUC-B63, Miniature Circuit Breaker, High Performance, Series: S200MUC, 277/480Y VAC, 250/500 VDC, 63 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 14 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 88 mm H Dimensions, Light Gray
S202MUC-B63 Application
For dupplementary protective devices, protection and control of the circuits against overloads and short-circuitsS202MUC-B63 Item Features
- Equipped with permanent magnets that assist in the forced extinguishing of the arc
- Auxiliary contact
- Failsafe bi-directional cylinder-lift screw terminal
- High performance MCB provides compact supplementary, energy limiting, circuit protection
S202MUC-B63 Standards
IEC/EN 60898-2 / IEC/EN 60947-2SKU #2338094Part Number #S202MUC-B63UNSPSC39121603UPC04013614432903
