S203MR-K40

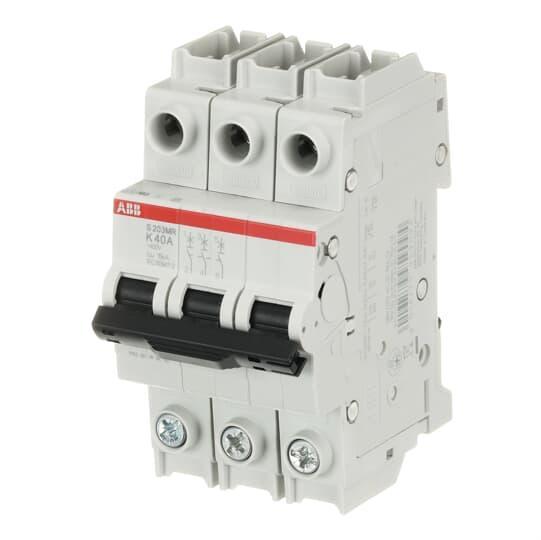

ABB S203MR-K40 Miniature Circuit Breaker
Part Number # S203MR-K40
SKU # 2353835
$127.93 / Each
Typical price:$339.58 / Each
ABB S203MR-K40 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S203MR-K40 |
| SKU #: | 2353835 |
| Amperage Rating: | 40 A |
| Dimensions: | 71 mm L x 52.5 mm W x 100 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 277/480Y VAC |
| Number of Poles: | 3 |
| Series: | S200MR |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | K, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Double Clamped/Ring Cable Lug |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779959094 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$127.93 / Each
Typical price:$339.58 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: S200MR, 400 V AC, 40 A, 50/60 Hz Frequency, 10 kA at 277/480Y V AC Interrupt, Thermal Magnetic Trip, 3 Pole, Double Clamped/Ring Cable Lug Connection, 18 to 4 AWG Wire, Group I Insulation, IP20/IP40 Enclosure, 35 mm DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 52.5 mm W x 100 mm H Dimensions
S203MR-K40 Standards
CSA 22.2 File No. 235|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2353835Part Number #S203MR-K40UNSPSC39121603UPC04016779959094
