Part Number # S203MUC-C25
SKU # 2389520
Image Disclaimers Message
Brand: ABB
S203MUC-C25

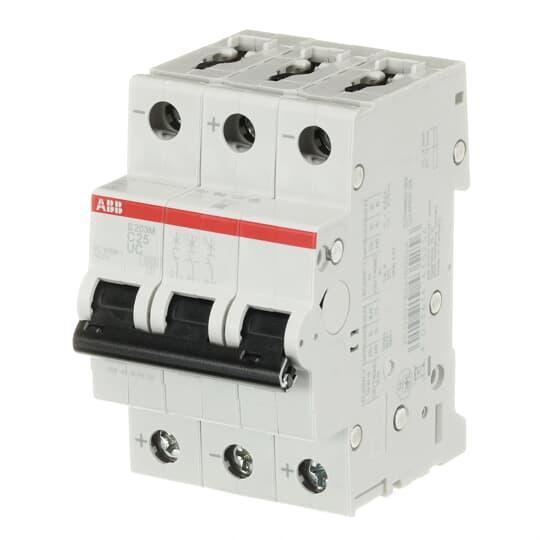

ABB S203MUC-C25 System Pro M Compact Miniature Circuit Breaker
Part Number # S203MUC-C25
SKU # 2389520
$241.94 / Each
Typical price:$709.71 / Each
ABB S203MUC-C25 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S203MUC-C25 |
| SKU #: | 2389520 |
| Amperage Rating: | 25 A |
| Dimensions: | 69 mm L x 52.5 mm W x 88 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 3 |
| Series: | S200MUC |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | C-Curve/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 14 to 4 AWG |
| Color: | Light gray |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04013614435256 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$241.94 / Each
Typical price:$709.71 / Each
Quantity:
- ABB System pro M compact, S203MUC-C25, Miniature Circuit Breaker, High Performance, Series: S200MUC, 277/480Y VAC, 25 A, 50 to 60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 3 Pole, Screw Connection, 14 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 52.5 mm W x 88 mm H Dimensions, Light Gray
S203MUC-C25 Application
For dupplementary protective devices, protection and control of the circuits against overloads and short-circuitsS203MUC-C25 Item Features
- Equipped with permanent magnets that assist in the forced extinguishing of the arc
- Auxiliary contact
- Failsafe bi-directional cylinder-lift screw terminal
- High performance MCB provides compact supplementary, energy limiting, circuit protection
S203MUC-C25 Standards
IEC/EN 60898-1 / IEC/EN 60947-2SKU #2389520Part Number #S203MUC-C25UNSPSC39121603UPC04013614435256
