Part Number # S801S-D20
SKU # 2363055
Image provided may only be a representation of
final product and may include optional equipment
S801S-D20

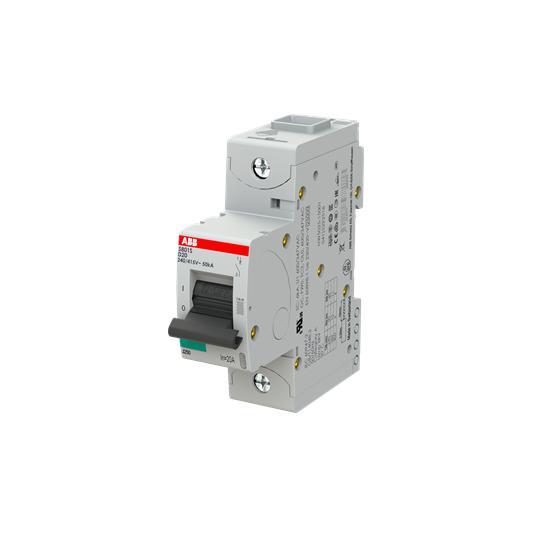

ABB S801S-D20 Miniature Circuit Breaker
Part Number # S801S-D20
SKU # 2363055
ABB S801S-D20 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S801S-D20 |
| SKU #: | 2363055 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 88.5 mm L x 26.5 mm W x 95 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 50, 50 kA |
| Number of Poles: | 1 |
| Series: | S800S-D |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Trip Type: | D-Curve/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Connection type: | Screw |
| Country of origin: | CH |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 07612271200992 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB S801S-D20 Miniature Circuit Breaker
Brand: ABB
Part Number: S801S-D20
ABB Miniature Circuit Breaker, High Performance, Series: S800S-D, 400/690 VAC, 20 A, 3.5 W Power, 50/60 Hz Frequency, 50 kA Interrupt, D-Curve/Thermal Magnetic Trip, 1 Pole, Screw Connection, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 60 deg C, 88.5 mm L x 26.5 mm W x 95 mm H Dimensions, Light Gray
Additional Description: ABB -S801S-D20 (N) MCB S800S 1P D 20A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The S801S-D20 is a 1-pole High Performance Circuit breaker with D-Dharacteristic, with cage terminal and a rated current of 20 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801S-D20 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801S-D20 more comfortable. Due to the fast arc extinction of S801S-D20 your application will be secured.
S801S-D20 Application
For allowing higher in-rush current during system start-up example motors and transformersS801S-D20 Item Features
- Finger safe and multi-function terminals, ring tongue compatible
- Auxiliary contact
S801S-D20 Standards
IEC/EN 60947-2 / IEC/EN 60898-1 / UL 1077SKU #2363055Part Number #S801S-D20UNSPSC39121603UPC07612271200992
