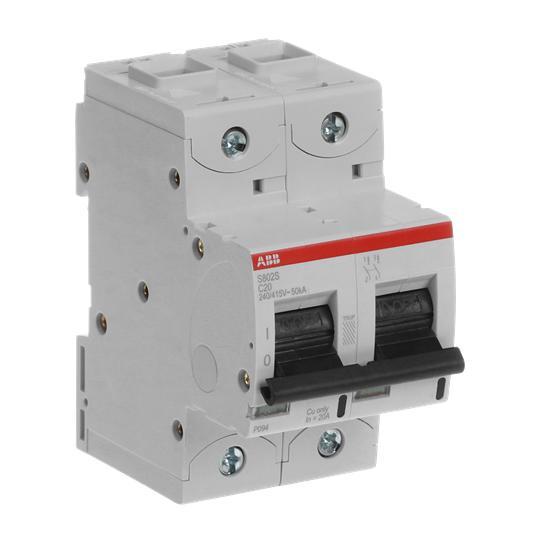

ABB S802S-C20 Miniature Circuit Breaker
Part Number # S802S-C20
SKU # 2232905
$384.18 / Each
ABB S802S-C20 Key Features
Brand: ABB
Part Number # S802S-C20
SKU #2232905
Amperage Rating: 20 A
Dimensions: 88.5 mm L x 53 mm W x 95 mm H
Enclosure Type: IP20/IP40
Frequency Rating: 50 to 60 Hz
Insulation Type: Class I
Interrupt Rating: 50 kA
Number of Poles: 2
Power Rating: 3.5 W
Series: S800S-C
Temperature Rating (Degrees F): -25 to 60 deg C
Trip Type: C-Curve/Thermal Magnetic
Type: High Performance
Voltage Rating: 400/690 VAC
Color: Light gray
Connection type: Screw
Country of origin: CH
Mounting type: DIN Rail
Manufacturer Name: ABB
UNSPSC: 39121603
UPC: 07612271200633
$384.18 / Each
- ABB Miniature Circuit Breaker, High Performance, Series: S800S-C, 400/690 VAC, 20 A, 3.5 W Power, 50 to 60 Hz Frequency, 50 kA Interrupt, C-Curve/Thermal Magnetic Trip, 2 Pole, Screw Connection, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 60 deg C, 88.5 mm L x 53 mm W x 95 mm H Dimensions, Light Gray
S802S-C20 Application
For use with medium magnetic start up currents example lighting and control panelsS802S-C20 Item Features
- Finger safe and multi-function terminals, ring tongue compatible
- Auxiliary contact
S802S-C20 Standards
IEC 60947-2SKU #2232905Part Number #S802S-C20UNSPSC39121603UPC07612271200633
