Part Number # S802S-D10
SKU # 2232907

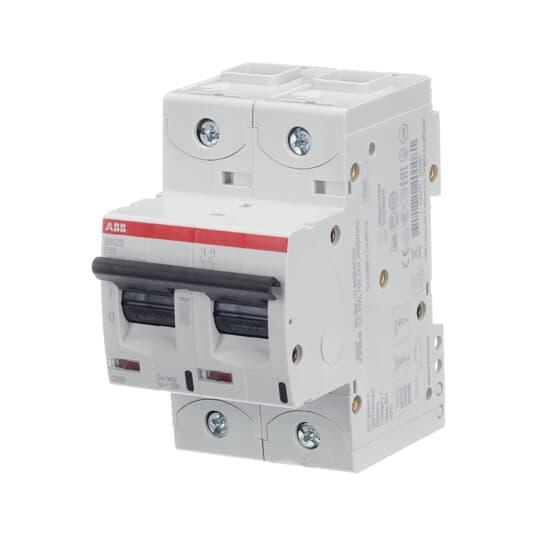

Image provided may only be a representation of
final product and may include optional equipment
S802S-D10
ABB S802S-D10 System pro M Miniature Circuit Breaker
Part Number # S802S-D10
SKU # 2232907
ABB S802S-D10 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S802S-D10 |
| SKU #: | 2232907 |
| Amperage Rating: | 10, 10 A |
| Dimensions: | 88.5 mm L x 53 mm W x 95 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 50, 50 kA |
| Number of Poles: | 2 |
| Series: | S800S-D |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Trip Type: | D-Curve/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 1 to 50 sq-mm Stranded/1 to 70 sq-mm Flexible |
| Connection type: | Screw |
| Country of origin: | CH |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 07612271201081 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB S802S-D10 System pro M Miniature Circuit Breaker
Brand: ABB
Part Number: S802S-D10
ABB System pro M compact Miniature Circuit Breaker, High Performance, Series: S800S-D, 400/690 VAC, 10 A, 2 W Power, 50/60 Hz Frequency, 50 kA Interrupt, D-Curve/Thermal Magnetic Trip, 2 Pole, Screw Connection, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 60 deg C, 88.5 mm L x 53 mm W x 95 mm H Dimensions, Light Gray
Additional Description: ABB -S802S-D10 (N) MCB S800S 2P D 10A 2CCS862001R0101 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The S802S-D10 is a 2-pole High Performance Circuit breaker with D-Dharacteristic, with cage terminal and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802S-D10 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802S-D10 more comfortable. Due to the fast arc extinction of S802S-D10 your application will be secured.
S802S-D10 Application
For allowing higher in-rush current during system start-up example motors and transformersS802S-D10 Item Features
- Auxiliary contact
- DIN rail mounting, finger safe and multi-function terminals, ring tongue compatible
S802S-D10 Standards
IEC/EN 60947-2 / IEC/EN 60898-1 / UL 1077SKU #2232907Part Number #S802S-D10UNSPSC39121603UPC07612271201081
