Part Number # S803S-B32
SKU # 2267157
Image Disclaimers Message
S803S-B32

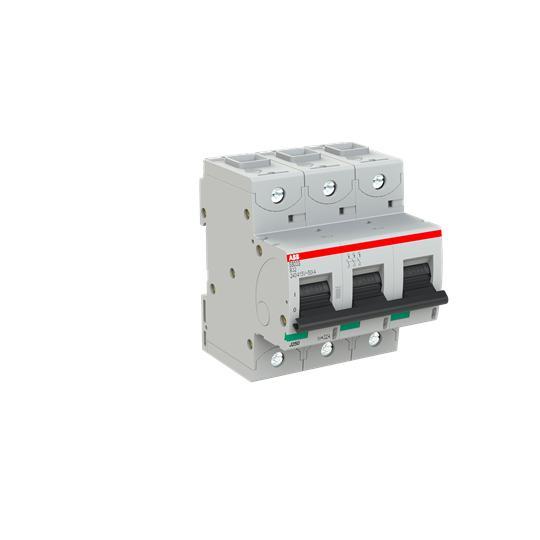

ABB S803S-B32 System pro M Miniature Circuit Breaker
Part Number # S803S-B32
SKU # 2267157
$592.84 / Each
ABB S803S-B32 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S803S-B32 |
| SKU #: | 2267157 |
| Amperage Rating: | 32, 32 A |
| Dimensions: | 88.5 mm L x 79.5 mm W x 95 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 50, 50 kA |
| Number of Poles: | 3 |
| Series: | S800S-B |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Trip Type: | B-Curve Thermal Magnetic, B-Curve/Thermal Magnetic, Thermal Magnetic |
| Type: | High Performance |
| Color: | Light gray |
| Connection type: | Screw |
| Country of origin: | CH |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 07612271200299 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$592.84 / Each
Quantity:
- ABB, S803S-B32, Miniature Circuit Breaker, High Performance, Series: S800S-B, 400/690 V AC, 32 A, 3.2 W Power, 50/60 Hz Frequency, 50 kA Interrupt, Thermal Magnetic Trip, 3 Pole, Screw Connection, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 60 deg C, 88.5 mm L x 79.5 mm W x 95 mm H Dimensions, Light Gray
S803S-B32 Application
For use in cable protection applications example control circuits and lightingS803S-B32 Item Features
- Auxiliary contacts for circuit breaker
- Finger safe and multi-function terminals, ring tongue compatible
- Auxiliary contact
- High performance MCB provides compact supplementary, energy limiting and circuit protection
S803S-B32 Standards
IEC/EN 60947-2 / IEC/EN 60898-1 / UL 1077SKU #2267157Part Number #S803S-B32UNSPSC39121603UPC07612271200299
