Part Number # S803S-UCK32
SKU # 2399850
S803S-UCK32
ABB S803S-UCK32 Miniature Circuit Breaker
Part Number # S803S-UCK32
SKU # 2399850
ABB S803S-UCK32 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S803S-UCK32 |
| SKU #: | 2399850 |
| Amperage Rating: | 32 A |
| Dimensions: | 88.5 mm L x 79.5 mm W x 95 mm H |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 50 kA |
| Number of Poles: | 3 |
| Series: | S800S |
| Temperature Rating (Degrees F): | -40 deg C |
| Trip Type: | K-Curve, Thermal Magnetic |
| Type: | High Performance |
| Country of origin: | CH |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 07612271203610 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB S803S-UCK32 Miniature Circuit Breaker
Brand: ABB
Part Number: S803S-UCK32
ABB Miniature Circuit Breaker, High Performance, Series: S800S, 250 VDC, 32 A, 50/60 Hz Frequency, 50 kA Interrupt, K-Curve Trip, 3 Pole, DIN Rail Mounting, -40 deg C, 88.5 mm L x 79.5 mm W x 95 mm H Dimensions
Additional Description: ABB -S803S-UCK32 (N) S803SUCK32 HIGH PERFORMANCE MCB NON-CANCELABLE, NON-RETURNABLE
Catalog Description: High Performance Miniature Circuit Breaker with Cage Terminal, Rated Current 32 Amps, 3 Pole, Trip Curve K, Voltage up to 250 VDC Per Pole, Ultimate Short-Circuit Breaking Capacity 50 kA, EN 60715 for Mounting on DIN Top Hat Rail, IEC/EN 60947-2
S803S-UCK32 Application
Commercial and Industrial ApplicationsS803S-UCK32 Item Features
- Protection and control of the circuits like motors, transformer and auxiliary circuits against overloads and short-circuits when a high breaking capacity is required
S803S-UCK32 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2399850Part Number #S803S-UCK32UNSPSC39121603UPC07612271203610

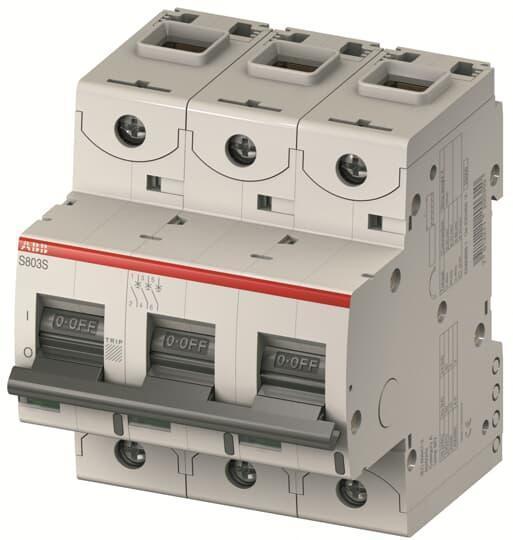

Image provided may only be a representation of final product and may include optional equipment
