Part Number # S804S-UCB40
SKU # 2417266
S804S-UCB40
ABB S804S-UCB40 Miniature Circuit Breaker
Part Number # S804S-UCB40
SKU # 2417266
ABB S804S-UCB40 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S804S-UCB40 |
| SKU #: | 2417266 |
| Amperage Rating: | 40 A |
| Dimensions: | 88.5 mm L x 106 mm W x 95 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 50 kA |
| Number of Poles: | 4 |
| Series: | S800S |
| Temperature Rating (Degrees F): | -40 deg C |
| Trip Type: | B-Curve, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 1 to 50 sq-mm Stranded/1 to 70 sq-mm Flexible |
| Connection type: | Cage Terminal |
| Country of origin: | CH |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 07612271203269 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB S804S-UCB40 Miniature Circuit Breaker
Brand: ABB
Part Number: S804S-UCB40
ABB Miniature Circuit Breaker, High Performance, Series: S800S, 250 VDC, 40 A, 50/60 Hz Frequency, 50 kA Interrupt, B-Curve Trip, 4 Pole, DIN Rail Mounting, -40 deg C, 88.5 mm L x 106 mm W x 95 mm H Dimensions
Additional Description: ABB -S804S-UCB40 (N) MCB S800S 4P UCB 40A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: High Performance Miniature Circuit Breaker with Cage Terminal, Rated Current 40 Amps, 4 Pole, Trip Curve B, Voltage up to 250 VDC Per Pole, Ultimate Short-Circuit Breaking Capacity 50 kA, EN 60715 for Mounting on DIN Top Hat Rail, IEC/EN 60947-2
S804S-UCB40 Application
Commercial and Industrial ApplicationsS804S-UCB40 Item Features
- Protection and control of the circuits against overloads and short-circuits when a high breaking capacity is required
- Protection for people and big length cables in TN and IT systems
S804S-UCB40 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2417266Part Number #S804S-UCB40UNSPSC39121603UPC07612271203269

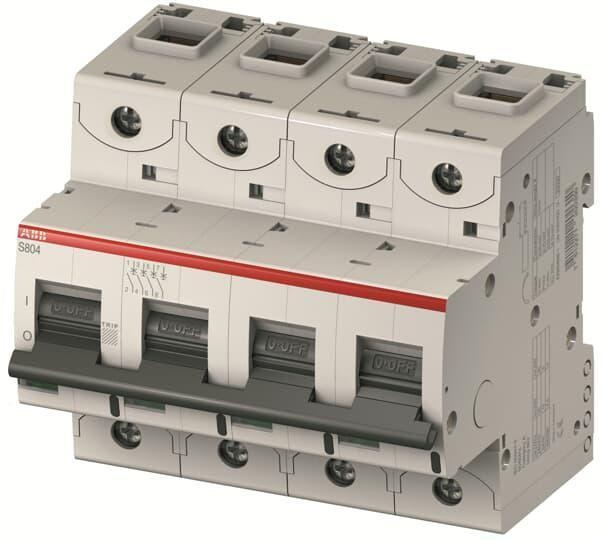

Image provided may only be a representation of final product and may include optional equipment
