S804U-PVS5

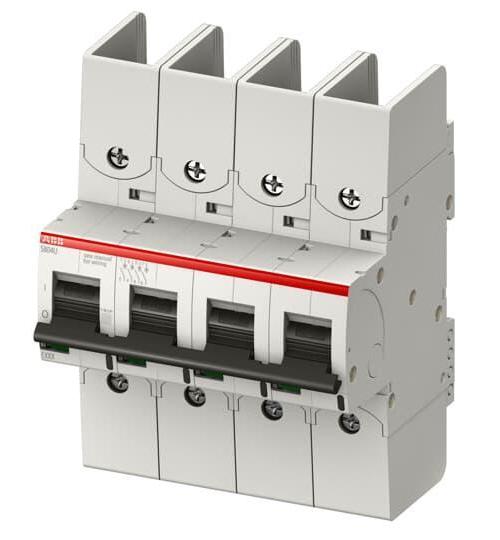

ABB S804U-PVS5 Miniature Circuit Breaker
Part Number # S804U-PVS5
SKU # 2340021
$3448.39 / Each
ABB S804U-PVS5 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | S804U-PVS5 |
| SKU #: | 2340021 |
| Amperage Rating: | 5, 5 A |
| Dimensions: | 142 mm H x 108 mm W x 82.5 mm D |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 50, 50 kA |
| Number of Poles: | 4 |
| Series: | S800 |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Trip Type: | S/Thermal Magnetic, Thermal Magnetic |
| Wire Size: | 14 to 2, 14 to 2 AWG |
| Connection type: | Screw |
| Country of origin: | CH |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 07612271419929 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3448.39 / Each
Quantity:
- ABB S804U-PVS5 Miniature Circuit Breaker, Series: S800, 1000 VDC, 5 A, 50/60 Hz Frequency, 50 kA Interrupt, Thermal Magnetic Trip, 4 Pole, Screw Connection, 14 to 2 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 60 deg C, 142 mm H x 108 mm W x 82.5 mm D Dimensions, Light Gray
S804U-PVS5 Application
For GFDI application in photovoltaic systemsS804U-PVS5 Item Features
- Device is developed to meet the requirements as GFDI (Ground Fault Detection Interrupter) in photovoltaic systems
- It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection
- Complies with UL489B and allows the use in photovoltaics in US
- Finger safe and multi-function terminals
S804U-PVS5 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2340021Part Number #S804U-PVS5UNSPSC39121603UPC07612271419929
