Part Number # ST201M-B10
SKU # 2357710
Image Disclaimers Message
Brand: ABB
ST201M-B10

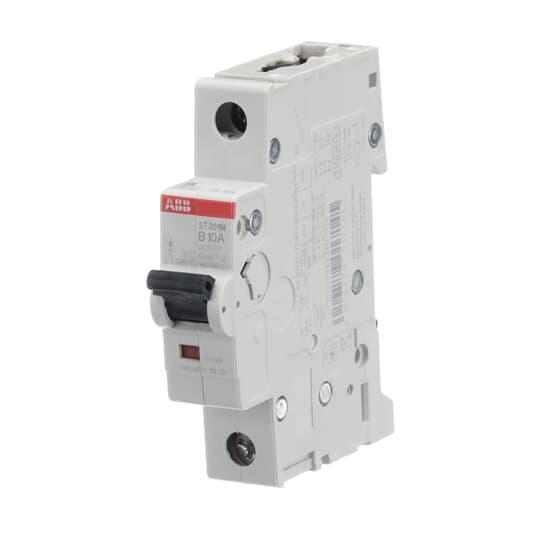

ABB ST201M-B10 Miniature Circuit Breaker
Part Number # ST201M-B10
SKU # 2357710
$31.10 / Each
Typical price:$91.25 / Each
ABB ST201M-B10 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST201M-B10 |
| SKU #: | 2357710 |
| Amperage Rating: | 10 A |
| Dimensions: | 69 mm L x 17.5 mm W x 88 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 277 VAC/60 VDC |
| Number of Poles: | 1 |
| Series: | ST200M |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | B, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Double Clamped |
| Material: | Thermoplastic |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779017145 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.10 / Each
Typical price:$91.25 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: ST200M, 230 V AC, 10 A, 50/60 Hz Frequency, 10 kA at 277 V AC/60 VDC Interrupt, Thermal Magnetic Trip, 1 Pole, Double Clamped Connection, 18 to 4 AWG Wire, Group II Insulation, IP20/IP40 Enclosure, 35 mm DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 88 mm H Dimensions, Thermoplastic
ST201M-B10 Item Features
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
ST201M-B10 Standards
CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2357710Part Number #ST201M-B10UNSPSC39121603UPC04016779017145
