Brand: ABB
ST201M-C6NA

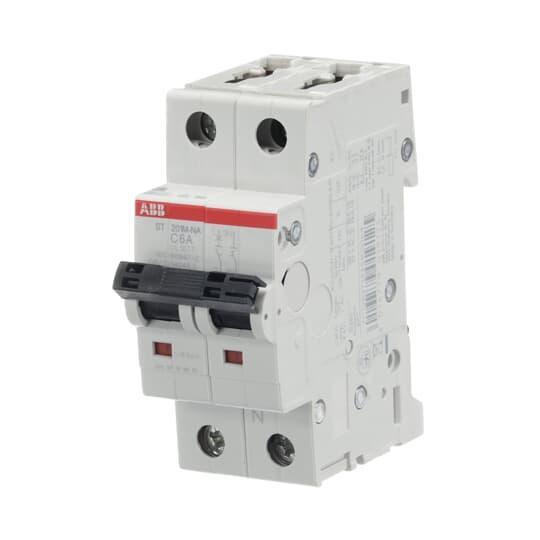

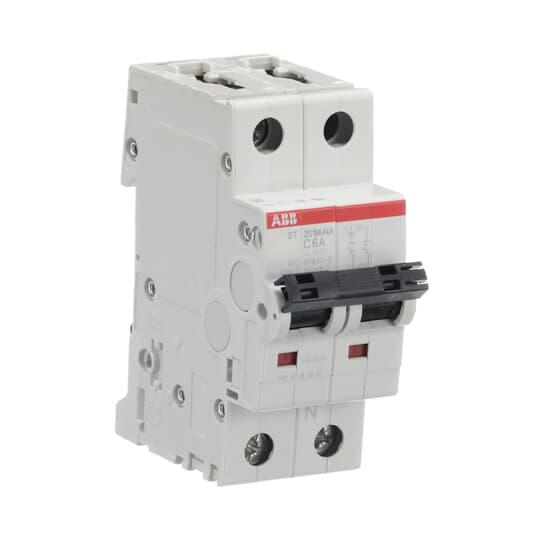

ABB ST201M-C6NA ST200M Low Voltage Circuit Breaker
Part Number # ST201M-C6NA
SKU # 2408967
$76.69 / Each
Typical price:$224.96 / Each
ABB ST201M-C6NA Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST201M-C6NA |
| SKU #: | 2408967 |
| Amperage Rating: | 6 A |
| Dimensions: | 88 mm H x 35 mm W x 69 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50 to 60 Hz |
| Interrupt Rating: | 11.2 kA at 230 VAC |
| Number of Poles: | 2 |
| Series: | ST200M |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | C-Curve, Thermal Magnetic |
| Type: | Low Voltage |
| Wire Size: | 25 Flexible/35 Rigid sq-mm |
| Connection type: | Double Clamped |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779019125 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$76.69 / Each
Typical price:$224.96 / Each
Quantity:
- ABB, ST201M-C6NA, Circuit Breaker, Low Voltage, Series: ST200M, 230 V, 6 A, 50 to 60 Hz Frequency, 11.2 kA at 230 VAC Interrupt, Thermal Magnetic Trip, 2 Pole, Double Clamped Connection, 25 Flexible/35 Rigid sq-mm Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 88 mm H x 35 mm W x 69 mm D Dimensions
ST201M-C6NA Standards
CSA 22.2 No. 235|IEC/EN 60947-2|UL 1077|PROP65SKU #2408967Part Number #ST201M-C6NAUNSPSC39121603UPC04016779019125
