Part Number # ST201M-D2
SKU # 2357789
Image Disclaimers Message
ST201M-D2

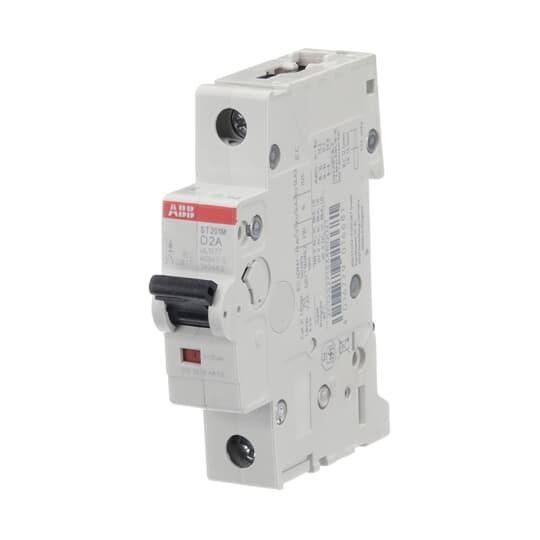

ABB ST201M-D2 Miniature Circuit Breaker
Part Number # ST201M-D2
SKU # 2357789
$31.10 / Each
Typical price:$91.25 / Each
ABB ST201M-D2 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST201M-D2 |
| SKU #: | 2357789 |
| Amperage Rating: | 2 A |
| Dimensions: | 69 mm L x 17.5 mm W x 88 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 277 VAC/60 VDC |
| Number of Poles: | 1 |
| Series: | ST200M |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | D-Curve, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Double Clamped |
| Material: | Thermoplastic |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779016681 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$31.10 / Each
Typical price:$91.25 / Each
Quantity:
ABB ST201M-D2 Miniature Circuit Breaker
Brand: ABB
Part Number: ST201M-D2
Additional Description: ABB -ST201M-D2 MCB ST200M 1P D 2A UL1077 UL1077
Catalog Description: ST201M-D2 Miniature Circuit Breaker ST201M-D2 Miniature Circuit Breaker D-Char., 10kA, 2A, 1P
ST201M-D2 Item Features
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
ST201M-D2 Standards
CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2357789Part Number #ST201M-D2UNSPSC39121603UPC04016779016681
