Part Number # ST201M-D6NA
SKU # 2357799
Brand: ABB
ST201M-D6NA

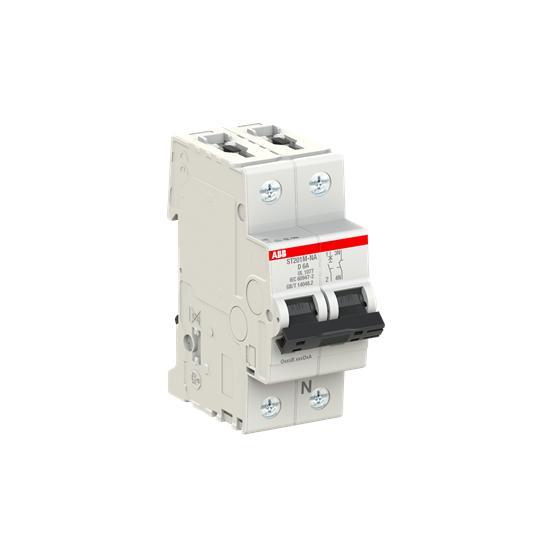

ABB ST201M-D6NA Miniature Circuit Breaker
Part Number # ST201M-D6NA
SKU # 2357799
$79.76 / Each
Typical price:$233.96 / Each
ABB ST201M-D6NA Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST201M-D6NA |
| SKU #: | 2357799 |
| Dimensions: | 69 mm L x 35 mm W x 88 mm H |
| Interrupt Rating: | 10 kA at 277 VAC |
| Number of Poles: | 1 + N |
| Series: | ST200M |
| Trip Type: | D-Curve |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Double Clamped |
| UNSPSC: | 39121603 |
| UPC: | 04016779019101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$79.76 / Each
Typical price:$233.96 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: ST200M, 230 V AC, 6 A, 50/60 Hz Frequency, 10 kA at 277 V AC Interrupt, Thermal Magnetic Trip, 1 + N Pole, D-Curveouble Clamp Connection, 18 to 4 AWG Wire, Group II Insulation, IP20/IP40 Enclosure, 35 mm D-CurveIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 88 mm H D-Curveimensions, Thermoplastic
ST201M-D6NA Item Features
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
ST201M-D6NA Standards
CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2357799Part Number #ST201M-D6NAUNSPSC39121603UPC04016779019101
Image provided may only be a representation of final product and may include optional equipment
