ST202M-K50

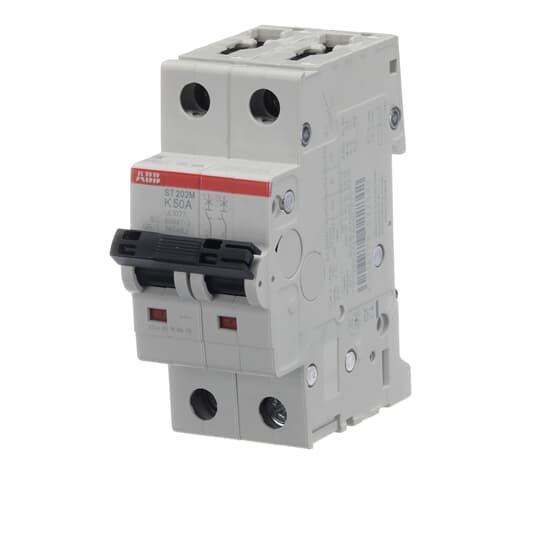

ABB ST202M-K50 Miniature Circuit Breaker
Part Number # ST202M-K50
SKU # 2368940
$87.78 / Each
Typical price:$257.50 / Each
ABB ST202M-K50 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST202M-K50 |
| SKU #: | 2368940 |
| Actuator Type: | Toggle |
| Amperage Rating: | 50 A |
| Dimensions: | 88 mm H x 35 mm W x 69 mm D |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 5 kA at 277 VAC, 10 kA at 125 VDC |
| Number of Poles: | 2 |
| Series: | ST200M |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | Fixed Thermal Magnetic K-Curve, Thermal Magnetic |
| Type: | Low Voltage |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Wire Terminal |
| Country of origin: | BG |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779022842 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$87.78 / Each
Typical price:$257.50 / Each
Quantity:
- ABB Miniature Circuit Breaker, Low Voltage, Series: ST200M, 480Y/277 VAC, 125 VDC, 50 A, 50/60 Hz Frequency, 5 kA at 277 VAC, 10 kA at 125 VDC Interrupt, Thermal Magnetic Trip, 2 Pole, Toggle Actuator, Wire Terminal Connection, 18 to 4 AWG Wire, Group II Sealable Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 88 mm H x 35 mm W x 69 mm D Dimensions, Thermoplastic, Light Gray
ST202M-K50 Item Features
- High performance MCB with interrupt rating up to 10 kA
- Suitable for many applications due to a wide range of product types and available accessories
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Field wiring available for most types
- Robust thermoplastic housing material for better protection against external influences
ST202M-K50 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2368940Part Number #ST202M-K50UNSPSC39121603UPC04016779022842
