Brand: ABB
ST203M-C6

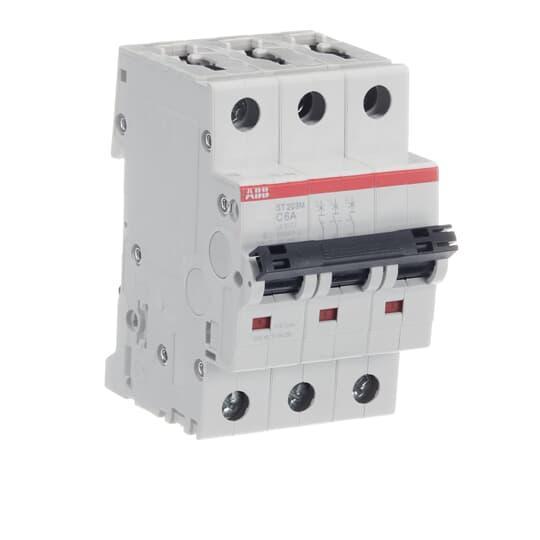

ABB ST203M-C6 Miniature Circuit Breaker
Part Number # ST203M-C6
SKU # 2368947
$115.90 / Each
Typical price:$339.97 / Each
ABB ST203M-C6 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST203M-C6 |
| SKU #: | 2368947 |
| Amperage Rating: | 6 A |
| Dimensions: | 69 mm L x 52.5 mm W x 88 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 480Y/277 VAC/125 VDC |
| Number of Poles: | 3 |
| Series: | ST200M |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | C-Curve, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Double Clamped |
| Material: | Thermoplastic |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779023528 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$115.90 / Each
Typical price:$339.97 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: ST200M, 400 VA, 6 A, 50/60 Hz Frequency, 10 kA at 480Y/277 V AC/125 VDC Interrupt, Thermal Magnetic Trip, 3 Pole, Double Clamp Connection, 18 to 4 AWG Wire, Group II Insulation, IP20/IP40 Enclosure, 35 mm DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 52.5 mm W x 88 mm H Dimensions, Thermoplastic
ST203M-C6 Item Features
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
ST203M-C6 Standards
CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2368947Part Number #ST203M-C6UNSPSC39121603UPC04016779023528
