ST203M-D10
ABB ST203M-D10 Miniature Circuit Breaker
Part Number # ST203M-D10
SKU # 2360859
$128.97 / Each
Typical price:$378.32 / Each
ABB ST203M-D10 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST203M-D10 |
| SKU #: | 2360859 |
| Dimensions: | 69 mm L x 52.5 mm W x 88 mm H |
| Interrupt Rating: | 10 kA at 480Y/277 VAC/125 VDC |
| Series: | ST200M |
| Connection type: | Double Clamped |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779023689 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$128.97 / Each
Typical price:$378.32 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: ST200M, 400 V AC, 10 A, 50/60 Hz Frequency, 10 kA at 480Y/277 V AC/125 VD-CurveC Interrupt, Thermal Magnetic Trip, 3 Pole, D-Curveouble Clamp Connection, 18 to 4 AWG Wire, Group II Insulation, IP20/IP40 Enclosure, 35 mm D-CurveIN Rail Mounting, -25 to 55 deg C, 69 mm L x 52.5 mm W x 88 mm H D-Curveimensions, Thermoplastic
ST203M-D10 Item Features
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
ST203M-D10 Standards
CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2360859Part Number #ST203M-D10UNSPSC39121603UPC04016779023689

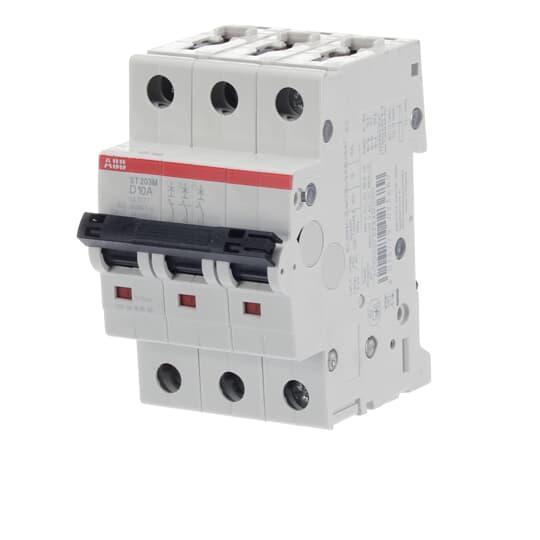

Image provided may only be a representation of final product and may include optional equipment
