ST203M-D8

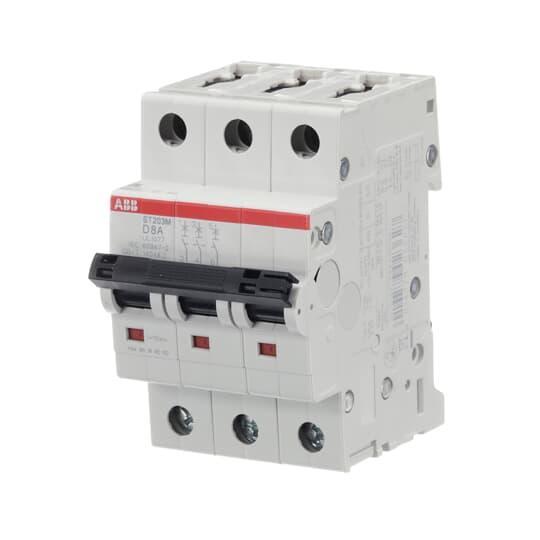

ABB ST203M-D8 Miniature Circuit Breaker
Part Number # ST203M-D8
SKU # 2368907
$115.90 / Each
Typical price:$339.97 / Each
ABB ST203M-D8 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST203M-D8 |
| SKU #: | 2368907 |
| Amperage Rating: | 8 A |
| Dimensions: | 69 mm L x 52.5 mm W x 88 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 480Y/277 VAC/125 VDC |
| Number of Poles: | 3 |
| Series: | ST200M |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Trip Type: | D-Curve, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4 AWG |
| Connection type: | Double Clamped |
| Material: | Thermoplastic |
| Mounting type: | 35 mm DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779023627 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$115.90 / Each
Typical price:$339.97 / Each
Quantity:
ABB ST203M-D8 Miniature Circuit Breaker
Brand: ABB
Part Number: ST203M-D8
Additional Description: ABB -ST203M-D8 MCB ST200M 3P D 8A UL1077
Catalog Description: ST203M-D8 Miniature Circuit Breaker ST203M-D8 Miniature Circuit Breaker D-Char., 10kA, 8A, 3P
ST203M-D8 Item Features
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
ST203M-D8 Standards
CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2368907Part Number #ST203M-D8UNSPSC39121603UPC04016779023627
