Part Number # ST203M-K30
SKU # 2368228
Brand: ABB
ST203M-K30

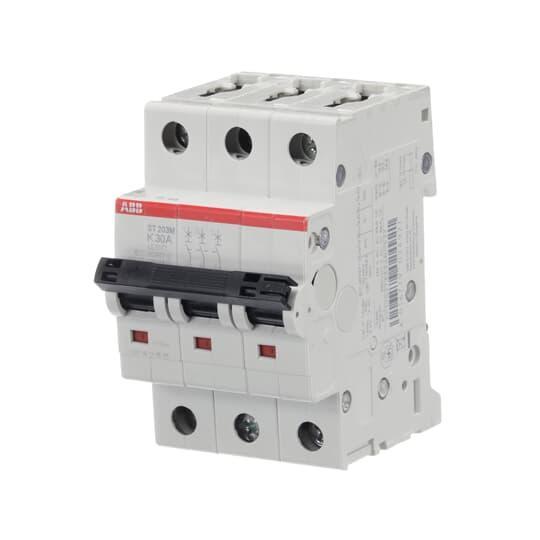

ABB ST203M-K30 Miniature Circuit Breaker
Part Number # ST203M-K30
SKU # 2368228
$128.97 / Each
Typical price:$378.32 / Each
ABB ST203M-K30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ST203M-K30 |
| SKU #: | 2368228 |
| UNSPSC: | 39121603 |
| UPC: | 04016779024921 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$128.97 / Each
Typical price:$378.32 / Each
Quantity:
- ABB Miniature Circuit Breaker, High Performance, Series: ST200M, 400 V AC, 30 A, 50/60 Hz Frequency, 10 kA at 480Y/277 V AC/125 VDC Interrupt, Thermal Magnetic Trip, 3 Pole, Double Clamped Connection, 18 to 4 AWG Wire, Group II Insulation, IP20/IP40 Enclosure, 35 mm DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 52.5 mm W x 88 mm H Dimensions, Thermoplastic
ST203M-K30 Item Features
- High performance MCB with interrupt rating up to 10 kA
- High calibration temperature of 40 deg C for reduced derating in ICP applications
- Short circuit current rating (SC) U2 enables continuous high level short circuit protection
- Laser printing provides clear product information on device
- Clear contact position indication in red/green ("real CPI")
- Unique, patented twin terminal for wiring up to 35 sq-mm with captive screws
- Robust thermoplastic housing material for better protection against external influences
ST203M-K30 Standards
CCC Certified|CSA 22.2 File No. 235|EAC Approved|IEC/EN 60947-2|RoHS EU Directive 2011/65/EU|UL 1077|VDE ApprovedSKU #2368228Part Number #ST203M-K30UNSPSC39121603UPC04016779024921
Image provided may only be a representation of final product and may include optional equipment
