Part Number # SU201M-C1.6
SKU # 2345796
Image Disclaimers Message
SU201M-C1.6

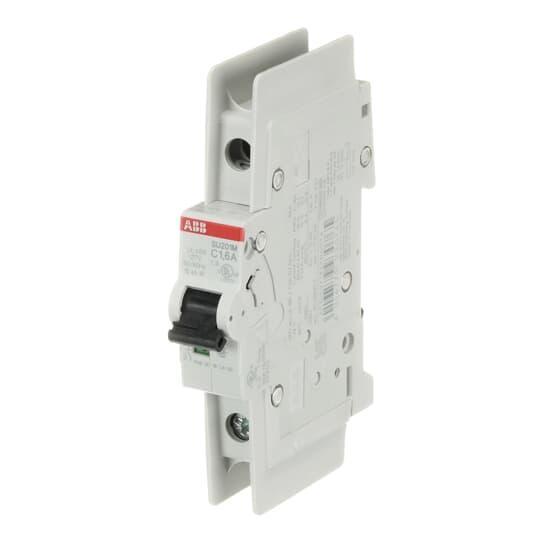

ABB SU201M-C1.6 Miniature Circuit Breaker
Part Number # SU201M-C1.6
SKU # 2345796
$35.27 / Each
Typical price:$103.47 / Each
ABB SU201M-C1.6 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | SU201M-C1.6 |
| SKU #: | 2345796 |
| Amperage Rating: | 1.6, 1.6 A |
| Dimensions: | 69 mm L x 17.5 mm W x 111 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 1 |
| Series: | SU200M |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | C-Curve, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Color: | Light gray |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779930765 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.27 / Each
Typical price:$103.47 / Each
Quantity:
- ABB, SU201M-C1.6, Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 1.6 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 111 mm H Dimensions, Light Gray
SU201M-C1.6 Application
For branch circuit protection applicationsSU201M-C1.6 Item Features
- Suitable for reverse feed (except for S200UDC)
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Failsafe bi-directional cylinder-lift screw terminal type
- 20000 cycle mechanical endurance
- TH35-7.5 (35 x 7.5 mm DIN Rail), TH35-15 (35 x 15 mm DIN Rail) according to IEC 60715
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Finger safe and multi-function terminals
- 2.8 Nm tightening torque
- Bus connection system
- Fast breaking time (2.3 to 2.5 m sec)
- 25 g, 2-shocks, 13 m sec shock resistance, 5 g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance
SU201M-C1.6 Standards
CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489SKU #2345796Part Number #SU201M-C1.6UNSPSC39121603UPC04016779930765
