Part Number # SU201M-C10
SKU # 2305377
Image Disclaimers Message
Brand: ABB
SU201M-C10

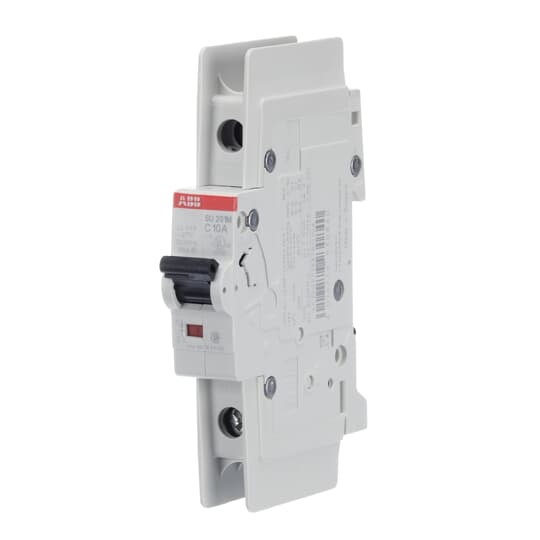

ABB SU201M-C10 Miniature Circuit Breaker
Part Number # SU201M-C10
SKU # 2305377
$35.27 / Each
Typical price:$103.47 / Each
ABB SU201M-C10 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | SU201M-C10 |
| SKU #: | 2305377 |
| Amperage Rating: | 10, 10 A |
| Dimensions: | 69 mm H x 17.5 mm W x 111 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 1 |
| Series: | SU200M |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | C-Curve/Thermal Magnetic, Thermal Magnetic/C-Curve |
| Type: | High Performance |
| Wire Size: | 18 to 8, 18 to 8 AWG |
| Color: | Gray |
| Connection type: | Screw |
| Mounting type: | DIN Rail |
| UNSPSC: | 39121603 |
| UPC: | 04016779930840 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.27 / Each
Typical price:$103.47 / Each
Quantity:
ABB SU201M-C10 Miniature Circuit Breaker
Brand: ABB
Part Number: SU201M-C10
ABB Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 10 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 8 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm H x 17.5 mm W x 111 mm H Dimensions, Gray
Additional Description: ABB -SU201M-C10 UL489 MCB 1P C 10A 480/277
Catalog Description: SU201M-C10 Miniature Circuit Breaker C-Char., 10kA, 10A, 1P UL489
SU201M-C10 Item Features
- Fast breaking time (2.3 to 2.5 ms)
- Bus connection system
- Finger-safe and multi-function terminal
- Suitable for reverse feed (except for S200UDC)
- 25 g, 2-shocks, 13 m s shock resistance, 5 g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance
- Fail-Safe bi-directional cylinder lift screw terminal
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- 35 x 7.5 mm DIN-rail TH35-7.5, 35 x 15 mm DIN-rail TH35-15 according to IEC 60715
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- 20000 cycle mechanical endurance
- 2.8 N-m tightening torque
SKU #2305377Part Number #SU201M-C10UNSPSC39121603UPC04016779930840
