Part Number # SU201M-C6
SKU # 2305384
SU201M-C6

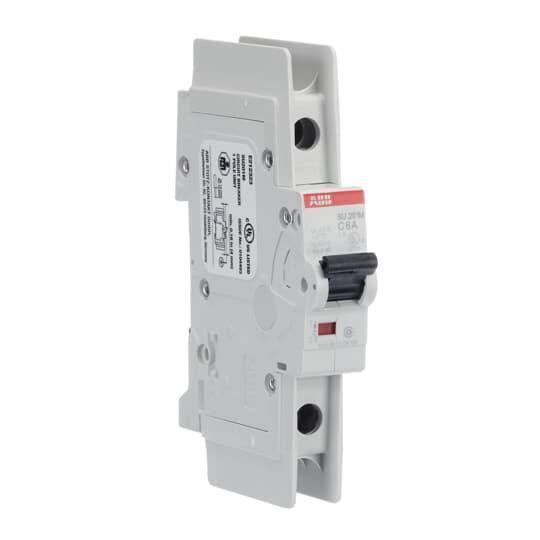

ABB SU201M-C6 Miniature Circuit Breaker
Part Number # SU201M-C6
SKU # 2305384
$36.69 / Each
Typical price:$107.61 / Each
ABB SU201M-C6 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | SU201M-C6 |
| SKU #: | 2305384 |
| Dimensions: | 111 mm H x 17.5 mm W x 69 mm D |
| Series: | SU200M |
| UNSPSC: | 39121603 |
| UPC: | 04016779930819 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$36.69 / Each
Typical price:$107.61 / Each
Quantity:
ABB SU201M-C6 Miniature Circuit Breaker
Brand: ABB
Part Number: SU201M-C6
ABB Miniature Circuit Breaker, Series: SU200M, 277/480 VAC, 96 VDC, 6 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, Screw Connection, 18 to 8 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 111 mm H x 17.5 mm W x 69 mm D Dimensions, Gray
Additional Description: ABB -SU201M-C6 UL489 MCB 1P C 6A 480/277
Catalog Description: SU201M-C6 Miniature Circuit Breaker C-Char., 10kA, 6A, 1P UL489
SU201M-C6 Item Features
- Fast breaking time (2.3 to 2.5 m sec)
- Bus connection system
- Finger-safe and multi-function terminal
- Suitable for reverse feed (except for S200UDC)
- 25 g, 2-shocks, 13 m sec shock resistance, 5 g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance
- Failsafe bi-directional cylinder-lift screw terminal type
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- TH35-7.5 (35 x 7.5 mm DIN Rail), TH35-15 (35 x 15 mm DIN Rail) according to IEC 60715
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- 20000 cycle mechanical endurance
- 2.8 Nm tightening torque
SKU #2305384Part Number #SU201M-C6UNSPSC39121603UPC04016779930819
Image provided may only be a representation of final product and may include optional equipment
