SU202M-C20

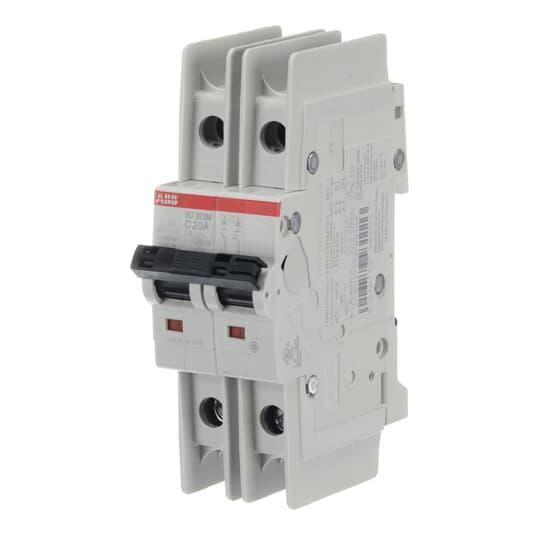

ABB SU202M-C20 Miniature Circuit Breaker
Part Number # SU202M-C20
SKU # 2311079
$87.00 / Each
Typical price:$255.19 / Each
ABB SU202M-C20 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | SU202M-C20 |
| SKU #: | 2311079 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 111 mm H x 35 mm W x 69 mm D, 69 mm L x 35 mm W x 111 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 2 |
| Series: | SU200M |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | C-Curve, Thermal Magnetic, Thermal/Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4 AWG, 18 to 8, 18 to 8 AWG |
| Color: | Gray, Light gray |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779931113 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$87.00 / Each
Typical price:$255.19 / Each
Quantity:
- ABB, SU202M-C20, Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480 VAC, 96 VDC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Screw Connection, 18 to 8 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 111 mm H x 35 mm W x 69 mm D Dimensions, Gray
SU202M-C20 Application
For branch circuit protectionSU202M-C20 Item Features
- Fast breaking time (2.3 to 2.5 m sec)
- Suitable for reverse feed (except for S200UDC)
- Failsafe bi-directional cylinder-lift screw terminal type
- 20000 cycle mechanical endurance
- 2.8 Nm tightening torque
- Current limiting according to UL 489
- High performance MCB provides compact supplementary, energy limiting, branch circuit protection
- Bus connection system
- Finger safe and multi-function terminals
- 25g/2 shocks/13 ms shock resistance, 5g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance, 28 cycles environment with 55 deg c/90-96 % and 25 deg c/95-100 %, (400 VAC) 15 kA rated ultimate short circuit breaking capacity (ICU), (400 VAC) 11.3 kA rated service short circuit breaking capacity (ICS), III category overvoltage, 3 deg pollution , red on/green off contact position indication, 20000 cycle mechanical endurance, 2.8 N-m tightening torque
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 25 sq-mm flexible, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- TH35-7.5 (35 x 7.5 mm DIN rail acc to IEC 60715), TH35-15 (35 x 15 mm DIN rail acc to IEC 60715)
- IP40 enclosure with cover
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- RAL 7035 gray color
- Auxiliary contact
- https://youtu.be/DQ5NrwpQMD8
SU202M-C20 Standards
CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489SKU #2311079Part Number #SU202M-C20UNSPSC39121603UPC04016779931113
