Brand: ABB
SU202M-K40

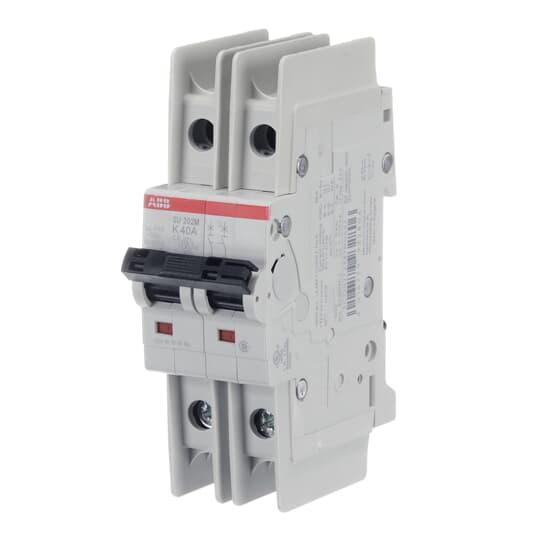

ABB SU202M-K40 Miniature Circuit Breaker
Part Number # SU202M-K40
SKU # 2309616
$83.88 / Each
Typical price:$267.48 / Each
ABB SU202M-K40 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | SU202M-K40 |
| SKU #: | 2309616 |
| Amperage Rating: | 40, 40 A |
| Dimensions: | 69 mm L x 35 mm W x 111 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10, 10 kA |
| Number of Poles: | 2 |
| Series: | SU200M |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Trip Type: | K-Curve, Thermal Magnetic |
| Type: | High Performance |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| Color: | Light gray |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 04016779932806 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.88 / Each
Typical price:$267.48 / Each
Quantity:
- ABB, SU202M-K40, Miniature Circuit Breaker, High Performance, Series: SU200M, 240 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Screw Connection, 18 to 4 AWG Wire, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 111 mm H Dimensions, Light Gray
SU202M-K40 Application
For branch circuit protection applicationsSU202M-K40 Item Features
- Fast breaking time
- 8 to 12 A magnetic and 1.05 to 1.2 A thermal current
- Auxiliary contacts for circuit breaker
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Actuator type insulation group II, black, sealable
- Suitable for reverse feed applications
- 18 to 4 AWG, 18 to 8 AWG busbar conductors
- Finger safe and multi-function terminals
- Bus connection system
- Current limiting according to UL 489
- For use with inductive loads
- Screw terminal type cable clamp
SU202M-K40 Standards
CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489SKU #2309616Part Number #SU202M-K40UNSPSC39121603UPC04016779932806
