Part Number # SU202M-Z20
SKU # 2325681
SU202M-Z20
ABB SU202M-Z20 Miniature Circuit Breaker
Part Number # SU202M-Z20
SKU # 2325681
$90.48 / Each
Typical price:$265.40 / Each
ABB SU202M-Z20 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | SU202M-Z20 |
| SKU #: | 2325681 |
| Dimensions: | 69 mm L x 35 mm W x 111 mm H |
| Series: | SU200M |
| Trip Type: | Z-Curve |
| Wire Size: | 18 to 4, 18 to 4 AWG |
| UNSPSC: | 39121603 |
| UPC: | 04016779933216 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.48 / Each
Typical price:$265.40 / Each
Quantity:
- ABB, SU202M-Z20, Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Screw Connection, 18 to 4 AWG Wire, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 111 mm H Dimensions, Light Gray
SU202M-Z20 Application
For branch circuit protectionSU202M-Z20 Item Features
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Equipped with permanent magnets that assist in the forced extinguishing of the arc
- Failsafe bi-directional cylinder-lift screw terminal
- Auxiliary contacts for circuit breaker
- Current limiting according to UL 489
SU202M-Z20 Standards
CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489SKU #2325681Part Number #SU202M-Z20UNSPSC39121603UPC04016779933216

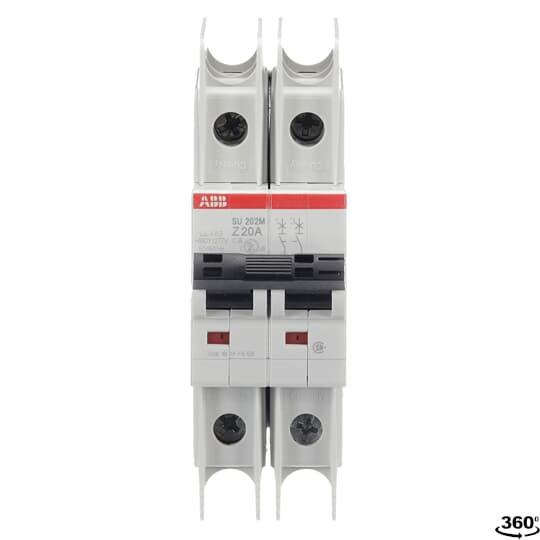

Image provided may only be a representation of final product and may include optional equipment
