T16-0.55

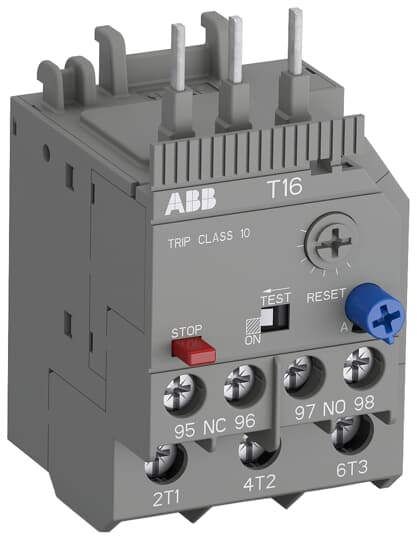

ABB T16-0.55 Thermal Overload Relay
Part Number # T16-0.55
SKU # 2427124
ABB T16-0.55 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | T16-0.55 |
| SKU #: | 2427124 |
| Contact Rating: | 690 V AC, 0.55 A |
| UNSPSC: | 39121521 |
| UPC: | 04013614397851 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB T16-0.55 Thermal Overload Relay
Brand: ABB
Part Number: T16-0.55
ABB, T16-0.55, Thermal Overload Relay, Class 10, 0.41 to 0.55 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 690 V AC, 0.55 A Contact, 3 Pole, Screw Terminal, IP20 Enclosure, -25 to 60 deg C, 53.5 mm L x 45 mm W x 76.7 mm H Dimensions
Additional Description: ABB -T16-0.55 TOL,AS/L,B/C,CLASS-10,0.41-0.55A
Catalog Description: The T16-0.55 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the mini contactors or block contactors. Single mounting kits are available as accessory.
T16-0.55 Application
For B6, BC6, B7, BC7, VB6, VBC6, VB7, VBC7, AS09, AS12 and AS16 ContactorT16-0.55 Item Features
- Stop and Test function
- Automatic or manual reset selectable
- Trip-free mechanism
- Suitable for three and 1-phase application
- Status indication
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Direct mounting onto mini contactors or block contactors
T16-0.55 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2427124Part Number #T16-0.55UNSPSC39121521UPC04013614397851
Image provided may only be a representation of final product and may include optional equipment
