Part Number # T16-1.0
SKU # 2299260

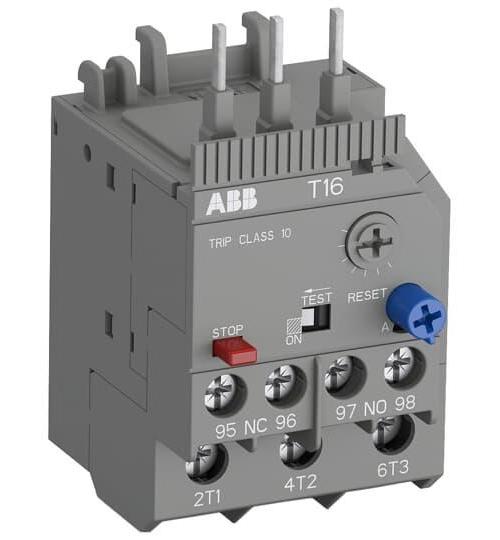

Image provided may only be a representation of
final product and may include optional equipment
T16-1.0
ABB T16-1.0 Thermal Overload Relay
Part Number # T16-1.0
SKU # 2299260
ABB T16-1.0 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | T16-1.0 |
| SKU #: | 2299260 |
| Amperage Rating: | 0.74 to 1, 0.74 to 1 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 3 A at 120 V AC, 3 A at 120 VAC |
| Dimensions: | 1.77 in W x 2.11 in D x 3.02 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | T16 |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | Economic |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614397875 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB T16-1.0 Thermal Overload Relay
Brand: ABB
Part Number: T16-1.0
ABB Thermal Overload Relay, Economic, Series: T16, 0.74 to 1 A, 50/60 Hz Frequency, 1NC-1NO Contact Form, 3 A at 120 VAC Contact, 3 Pole, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, -25 to 60 deg C, 1.77 in W x 2.11 in D x 3.02 in H Dimensions
Additional Description: ABB -T16-1.0 TOL,AS/L,B/C,CLASS-10,0.74-1.00A
Catalog Description: The T16-1.0 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the mini contactors or block contactors. Single mounting kits are available as accessory.
T16-1.0 Application
Offers reliable protection for motors in the event of overload or phase failureT16-1.0 Item Features
- Overload protection - trip class 10
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- Sealable operating elements
- 0.55 A at 125 VDC, 1.25 A at 24 VDC, 0.27 A at 250 VDC, 0.15 A at 500 VDC, 0.55 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 0.5 A at 120 VAC, 3A at 240 VAC, 0.5 A at 240 VAC, 0.75 A at 400 VAC, 0.5 A at 400 VAC, 0.75 A at 500 VAC, 0.5 A at 500 VAC rated operational current AC-15 rated operational current AC-15
T16-1.0 Standards
CE Certified|CSA Certified|UL ListedSKU #2299260Part Number #T16-1.0UNSPSC39122330UPC04013614397875
