TA200DU150
ABB TA200DU150 Thermal Overload Relay
Part Number # TA200DU150
SKU # 2187133
ABB TA200DU150 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TA200DU150 |
| SKU #: | 2187133 |
| Amperage Rating: | 110 to 150 A |
| UNSPSC: | 39122330 |
| UPC: | 04013614286049 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

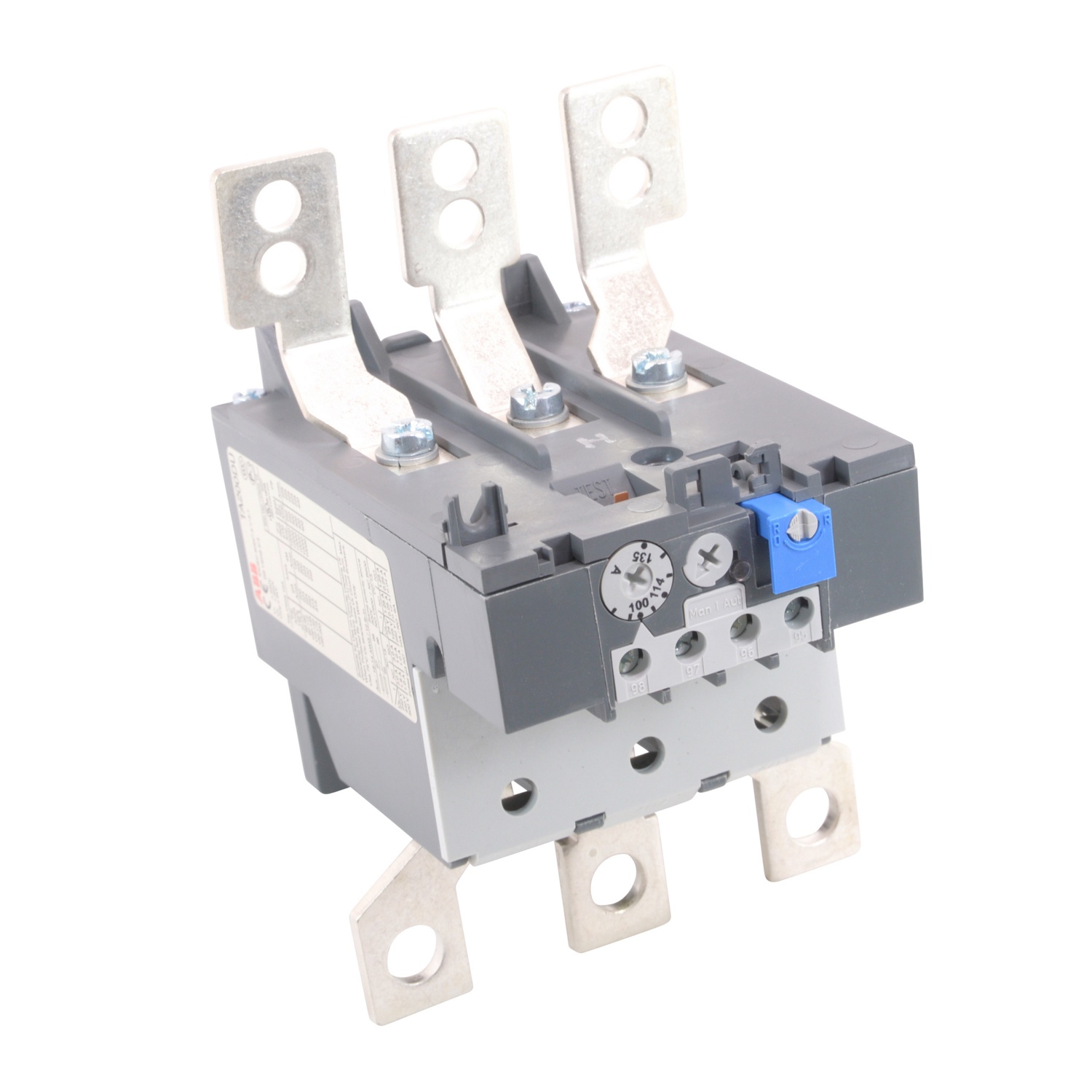

ABB TA200DU150 Thermal Overload Relay
Brand: ABB
Part Number: TA200DU150
ABB Thermal Overload Relay, Economic, Series: TA200DU, 110 to 150 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 3 A at 120 V AC Contact, 3 Pole, Screw Terminal, IP00/IP20 Enclosure, -25 to 55 deg C, 104 mm W x 126 mm D x 151 mm H Dimensions
Additional Description: ABB -TA200DU150 O/L RELAY 110-150A A145-A185
Catalog Description: The TA200DU-150 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
TA200DU150 Application
For A145/A185/AF145/AF185/AF190/AF205 contactorTA200DU150 Item Features
- Manual or automatic reset selectable
- Phase loss sensitivity acceleration to IEC/EN 60947-4-1
- TEST and STOP function - trip indication on the front
- Temperature compensation
- 0.25 A at 125 VDC, 1.25 A at 24 VDC, 0.12 A at 250 VDC, 0.04 A at 250 VDC, 0.25 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 1.5 A at 120 VAC, 3A at 240 VAC, 1.5 A at 240 VAC, 1.9 A at 400 VAC, 1 A at 400 VAC, 1 A at 440 VAC, 1 A at 500 VAC rated operational current AC-15
TA200DU150 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2187133Part Number #TA200DU150UNSPSC39122330UPC04013614286049
Image provided may only be a representation of final product and may include optional equipment
