Part Number # TA200DU200
SKU # 1256118
Image Disclaimers Message
Brand: ABB
TA200DU200

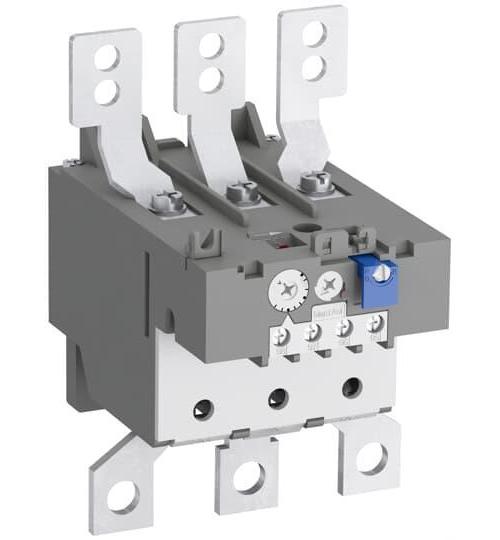

ABB TA200DU200 Thermal Overload Relay
Part Number # TA200DU200
SKU # 1256118
$246.07 / Each
Typical price:$294.09 / Each
ABB TA200DU200 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TA200DU200 |
| SKU #: | 1256118 |
| Amperage Rating: | 150 to 200, 150 to 200 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 3 A at 120 VAC |
| Dimensions: | 104 mm W x 126 mm D x 151 mm H |
| Enclosure Type: | IP00/IP20, IP20/IP00 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | TA200DU |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | Economic |
| Country of origin: | CZ |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614286063 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$246.07 / Each
Typical price:$294.09 / Each
Quantity:
- ABB Thermal Overload Relay, Economic, Series: TA200DU, 150 to 200 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 3 A at 120 VAC Contact, 3 Pole, Screw Terminal, IP00/IP20 Enclosure, -25 to 55 deg C, 104 mm W x 126 mm D x 151 mm H Dimensions
TA200DU200 Application
For A145/A185/AF145/AF185/AF190/AF205 contactorTA200DU200 Item Features
- Manual or automatic reset selectable
- Phase loss sensitivity acceleration to IEC/EN 60947-4-1
- TEST and STOP function - trip indication on the front
- Temperature compensation
- 0.25 A at 125 VDC, 1.25 A at 24 VDC, 0.12 A at 250 VDC, 0.04 A at 250 VDC, 0.25 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 1.5 A at 120 VAC, 3A at 240 VAC, 1.5 A at 240 VAC, 1.9 A at 400 VAC, 1 A at 400 VAC, 1 A at 440 VAC, 1 A at 500 VAC rated operational current AC-15
TA200DU200 Standards
RoHs, CSA, cUL, CE, GOSTSKU #1256118Part Number #TA200DU200UNSPSC39122330UPC04013614286063
