Part Number # TF140DU-142
SKU # 2293184
TF140DU-142

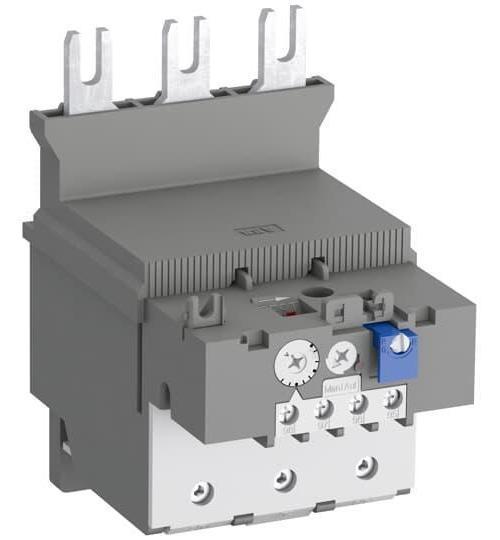

ABB TF140DU-142 Thermal Overload Relay
Part Number # TF140DU-142
SKU # 2293184
ABB TF140DU-142 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TF140DU-142 |
| SKU #: | 2293184 |
| Amperage Rating: | 110 to 142, 110 to 142 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 3 A at 120 V AC, 3 A at 120 VAC |
| Dimensions: | 3.31 in W x 4.96 in D x 5.51 in H |
| Enclosure Type: | IP10/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | TF140DU |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | Economic |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614446849 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TF140DU-142 Thermal Overload Relay
Brand: ABB
Part Number: TF140DU-142
ABB Thermal Overload Relay, Economic, Series: TF140DU, 110 to 142 A, 50/60 Hz Frequency, 1NC-1NO Contact Form, 3 A at 120 VAC Contact, 3 Pole, Screw Terminal, IP10/IP20 Enclosure, -25 to 55 deg C, 3.31 in W x 4.96 in D x 5.51 in H Dimensions
Additional Description: ABB -TF140DU-142 TOL,AF116-AF146,CLASS-10,110-142A
Catalog Description: The TF140DU-142 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors.
TF140DU-142 Item Features
- Overload protection - trip class 10A
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- 0.25 A at 125 VDC, 1.25 A at 24 VDC, 0.12 A at 250 VDC, 0.04 A at 250 VDC, 0.25 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 1.5 A at 120 VAC, 3A at 240 VAC, 1.5 A at 240 VAC, 1.9 A at 400 VAC, 1 A at 400 VAC, 1 A at 440 VAC, 1 A at 500 VAC rated operational current AC-15
TF140DU-142 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2293184Part Number #TF140DU-142UNSPSC39122330UPC04013614446849
Image provided may only be a representation of final product and may include optional equipment
