TF42-1.3

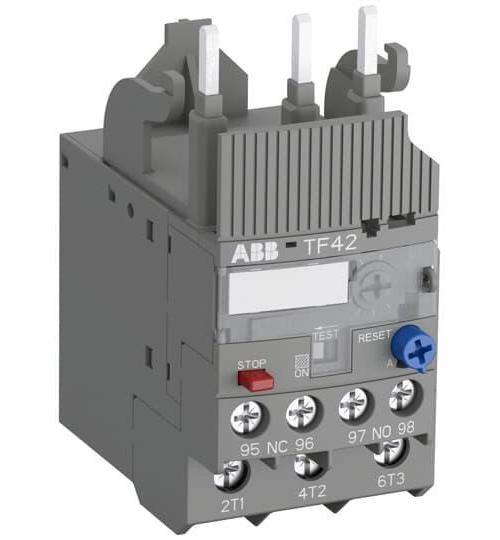

ABB TF42-1.3 Thermal Overload Relay
Part Number # TF42-1.3
SKU # 2224156
ABB TF42-1.3 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TF42-1.3 |
| SKU #: | 2224156 |
| Amperage Rating: | 1 to 1.3 A |
| Contact Rating: | 1.3 A at 690 V AC |
| UNSPSC: | 39122330 |
| UPC: | 04013614398056 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TF42-1.3 Thermal Overload Relay
Brand: ABB
Part Number: TF42-1.3
ABB Thermal Overload Relay, Series: TF42, 1 to 1.3 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 1.3 A at 690 V AC Contact, 3 Pole, Threaded Terminal, IP20 Enclosure, -25 to 60 deg C, 3.48 in H x 1.77 in W x 2.78 in D Dimensions
Additional Description: ABB -TF42-1.3 THERMAL O/L RELAY, 1.00-1.30A
Catalog Description: The TF42-1.3 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
TF42-1.3 Application
For reliable protection of motors in the event of overload or phase failureTF42-1.3 Item Features
- Economic overload protection
- Motor applications up to 310 A
- Automatic or manual reset selectable
- RESET, TEST and stop functions
- 10 A trip class
- Phase loss sensitivity
- Trip-free mechanism
- Adjustable current setting for overload protection
- Direct mounting onto block contactors
TF42-1.3 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2224156Part Number #TF42-1.3UNSPSC39122330UPC04013614398056
Image provided may only be a representation of final product and may include optional equipment
