TF42-3.1

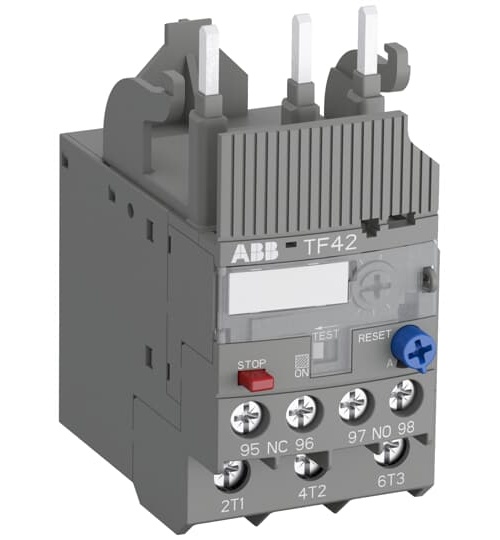

ABB TF42-3.1 Thermal Overload Relay
Part Number # TF42-3.1
SKU # 2224157
$71.09 / Each
Typical price:$84.97 / Each
ABB TF42-3.1 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TF42-3.1 |
| SKU #: | 2224157 |
| Amperage Rating: | 2.3 to 3.1, 2.3 to 3.1 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 3.1 A at 690 V AC, 3.1 A at 690 VAC |
| Dimensions: | 3.48 in H x 1.77 in W x 2.78 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | TF42 |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Terminal Type: | Threaded |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614398087 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$71.09 / Each
Typical price:$84.97 / Each
Quantity:
- ABB Thermal Overload Relay, Series: TF42, 2.3 to 3.1 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 3.1 A at 690 V AC Contact, 3 Pole, Threaded Terminal, IP20 Enclosure, -25 to 60 deg C, 3.48 in H x 1.77 in W x 2.78 in D Dimensions
TF42-3.1 Application
For reliable protection of motors in the event of overload or phase failureTF42-3.1 Item Features
- Economic overload protection
- Motor applications up to 310 A
- Automatic or manual reset selectable
- RESET, TEST and stop functions
- 10 A trip class
- Phase loss sensitivity
- Trip-free mechanism
- Adjustable current setting for overload protection
- Direct mounting onto block contactors
TF42-3.1 Standards
UL File No. E48139|CE Certified|CCC Certified|CSA Certified|GOST Certified|cUL Listed|IEC CertifiedSKU #2224157Part Number #TF42-3.1UNSPSC39122330UPC04013614398087
