Part Number # TF65-28
SKU # 2366395
Image Disclaimers Message
Brand: ABB
TF65-28

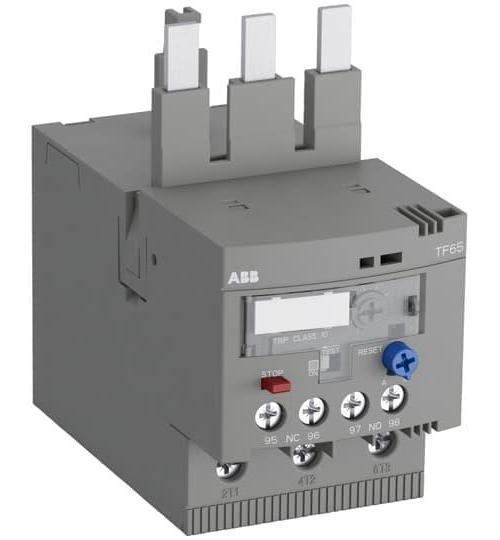

ABB TF65-28 Thermal Overload Relay
Part Number # TF65-28
SKU # 2366395
$103.91 / Each
Typical price:$124.18 / Each
ABB TF65-28 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TF65-28 |
| SKU #: | 2366395 |
| Amperage Rating: | 22 to 28, 22 to 28 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 3 A at 120 V AC, 3 A at 120 VAC |
| Dimensions: | 2.16 in W x 4.21 in D x 3.45 in H |
| Enclosure Type: | IP10/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | TF65 |
| Temperature Rating (Degrees F): | -40 to 70, -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Economic |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614482915 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$103.91 / Each
Typical price:$124.18 / Each
Quantity:
- ABB Thermal Overload Relay, Economic, Series: TF65, 22 to 28 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 3 A at 120 V AC Contact, 3 Pole, DIN Rail Mounting, Screw Terminal, IP10/IP20 Enclosure, -40 to 70 deg C, 2.16 in W x 4.21 in D x 3.45 in H Dimensions
TF65-28 Item Features
- Overload protection - trip class 10
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- Sealable operating elements
- 0.55 A at 125 VDC, 1.25 A at 24 VDC, 0.27 A at 250 VDC, 0.15 A at 500 VDC, 0.55 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 0.5 A at 120 VAC, 3A at 240 VAC, 0.5 A at 240 VAC, 0.75 A at 400 VAC, 0.5 A at 400 VAC, 0.75 A at 500 VAC, 0.5 A at 500 VAC rated operational current AC-15 rated operational current AC-15
TF65-28 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2366395Part Number #TF65-28UNSPSC39122330UPC04013614482915
