Part Number # TF65-60
SKU # 2277396
TF65-60

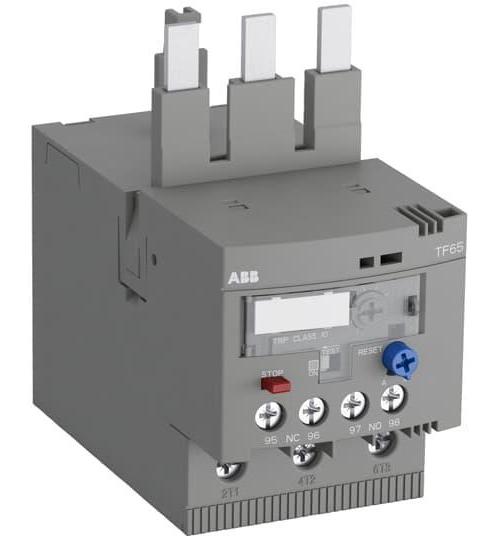

ABB TF65-60 Thermal Overload Relay
Part Number # TF65-60
SKU # 2277396
ABB TF65-60 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TF65-60 |
| SKU #: | 2277396 |
| Amperage Rating: | 60 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 101.4 mm H x 54.9 mm W x 106.9 mm D |
| Enclosure Type: | IP10/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | TF65 |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Terminal Type: | Threaded |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614482960 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TF65-60 Thermal Overload Relay
Brand: ABB
Part Number: TF65-60
ABB Thermal Overload Relay, Series: TF65, 60 A, 50/60 Hz Frequency, 1NC-1NO Contact Form, 3 Pole, DIN Rail Mounting, Threaded Terminal, IP10/IP20 Enclosure, -25 to 60 deg C, 101.4 mm H x 54.9 mm W x 106.9 mm D Dimensions
Additional Description: ABB -TF65-60 TOL,AF40-65,CLASS-10,50-60A AF40-65,CLASS-10,50-6
Catalog Description: The TF65-60 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
TF65-60 Application
For motors in the event of overload or phase failureTF65-60 Item Features
- The device has trip class 10 A
- The temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, stop and test function and a trip indication
- The overload relays are connected directly to the block contactors
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Suitable for 1 and 3-phase application
- Trip free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- Sealable operating elements
- 36 to 47 A setting range
- 6 kV auxiliary, 8 kV main rated impulse withstand voltage
- 690 VAC insulation voltage
- Position 1 to 6 mounting
- 2000 m maximum operating altitude permissible
- 2.1 to 3.6 W power loss
TF65-60 Standards
IEC/EN 60947-1/60947-4-1/60947-5-1 CertifiedSKU #2277396Part Number #TF65-60UNSPSC39122330UPC04013614482960
Image provided may only be a representation of final product and may include optional equipment
