Part Number # TF96-87
SKU # 2382815
Image Disclaimers Message
Brand: ABB
TF96-87

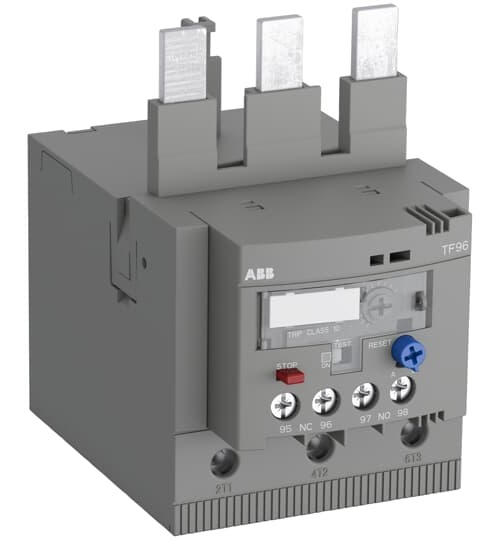

ABB TF96-87 Thermal Overload Relay
Part Number # TF96-87
SKU # 2382815
$185.93 / Each
Typical price:$222.21 / Each
ABB TF96-87 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TF96-87 |
| SKU #: | 2382815 |
| Amperage Rating: | 75 to 87 A |
| Contact Form: | 1NC-1NO, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 3 A at 120 VAC |
| Dimensions: | 2.75 in W x 4.21 in D x 4.19 in H |
| Enclosure Type: | IP10/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Series: | TF96 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Economic |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122330 |
| UPC: | 04013614483028 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$185.93 / Each
Typical price:$222.21 / Each
Quantity:
- ABB Thermal Overload Relay, Economic, Series: TF96, 75 to 87 A, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 3 A at 120 VAC Contact, 3 Pole, DIN Rail Mounting, Screw Terminal, IP10/IP20 Enclosure, -40 to 70 deg C, 2.75 in W x 4.21 in D x 4.19 in H Dimensions
TF96-87 Item Features
- Overload protection - trip class 10
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- Sealable operating elements
- 0.55 A at 125 VDC, 1.25 A at 24 VDC, 0.27 A at 250 VDC, 0.15 A at 500 VDC, 0.55 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 0.5 A at 120 VAC, 3A at 240 VAC, 0.5 A at 240 VAC, 0.75 A at 400 VAC, 0.5 A at 400 VAC, 0.75 A at 500 VAC, 0.5 A at 500 VAC rated operational current AC-15 rated operational current AC-15
TF96-87 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2382815Part Number #TF96-87UNSPSC39122330UPC04013614483028
