Part Number # TF96-96
SKU # 2295607
TF96-96
ABB TF96-96 Thermal Overload Relay
Part Number # TF96-96
SKU # 2295607
ABB TF96-96 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TF96-96 |
| SKU #: | 2295607 |
| Amperage Rating: | 84 to 96, 84 to 96 A |
| Contact Rating: | 3 A at 120 V AC, 3 A at 120 VAC |
| Dimensions: | 2.75 in W x 4.21 in D x 4.19 in H |
| Enclosure Type: | IP10/IP20 |
| Series: | TF96 |
| Type: | Economic |
| UNSPSC: | 39122330 |
| UPC: | 04013614483035 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TF96-96 Thermal Overload Relay
Brand: ABB
Part Number: TF96-96
ABB Thermal Overload Relay, Economic, Series: TF96, 84 to 96 A, 50/60 Hz Frequency, 1NC-1NO Contact Form, 3 A at 120 VAC Contact, 3 Pole, DIN Rail Mounting, Screw Terminal, IP10/IP20 Enclosure, -40 to 70 deg C, 2.75 in W x 4.21 in D x 4.19 in H Dimensions
Additional Description: ABB -TF96-96 TOL,AF80-96,CLASS-10,84-96A
Catalog Description: The TF96-96 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
TF96-96 Item Features
- Overload protection - trip class 10
- Phase loss sensitivity
- Adjustable current setting for overload protection
- Automatic or manual reset selectable
- Trip-free mechanism
- Status indication
- Stop and test function
- Direct mounting onto block contactors
- Sealable operating elements
- 0.55 A at 125 VDC, 1.25 A at 24 VDC, 0.27 A at 250 VDC, 0.15 A at 500 VDC, 0.55 A at 60 VDC rated operational current DC-13
- 3 A at 120 VAC, 0.5 A at 120 VAC, 3A at 240 VAC, 0.5 A at 240 VAC, 0.75 A at 400 VAC, 0.5 A at 400 VAC, 0.75 A at 500 VAC, 0.5 A at 500 VAC rated operational current AC-15 rated operational current AC-15
TF96-96 Standards
ABS Certified|ATEX Certified|BAA Compliant|BV Certified|CB Certified|CE Certified|CCC Certified|cUL Listed|DNV GL Certified|EAC Certified|GOST Certified|LR Certified|RMRS Certified|RINA Certified|UL ListedSKU #2295607Part Number #TF96-96UNSPSC39122330UPC04013614483035

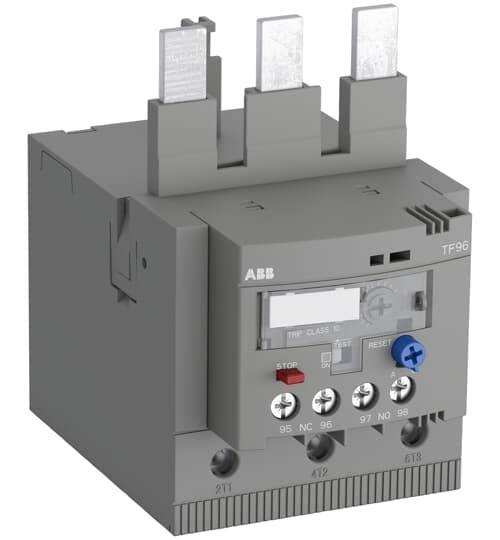

Image provided may only be a representation of final product and may include optional equipment
