Part Number # TG3225
SKU # 2400770
TG3225
ABB TG3225 Ge Spec-Setter Safety Switch
Part Number # TG3225
SKU # 2400770
ABB TG3225 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TG3225 |
| SKU #: | 2400770 |
| Actuator Type: | Handle |
| Amperage Rating: | 400 A |
| Dimensions: | 21.6 in W x 8.7 in D x 49.44 in H |
| Enclosure Type: | NEMA 1 |
| Finish: | Hot Dipped Galvanized/Powder Coated |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 50 hp |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Phase: | 3, 3 ph |
| Short Circuit Current Rating (kA): | 10 kA |
| Temperature Rating (Degrees F): | 60/75 deg C |
| Terminal Type: | Line/Load Lug |
| Type: | Fused General Duty |
| Material: | Steel |
| Mounting type: | 3-Point/Self-Leveling |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164008562 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TG3225 Ge Spec-Setter Safety Switch
Brand: ABB
Part Number: TG3225
Additional Description: ABB -TG3225 (N) 400A 2P GD N1 240V FUSIBLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Designed for residential and light commercial applications where duty is not severe. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type GD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism (30-200 amp). 60/75 C conductor rating. TG3225
TG3225 Application
Residential, Light Commercial, General, Electrical Distribution and Control ApplicationsTG3225 Item Features
- Integral cover interlock on 30 to 200 A disconnects for added protection
- Highly visible On/Off label takes the guesswork out of safety and gives a clean, modern appearance
- Bright red handle is easy to see and easy to grip
- Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive On/Off indication while prolonging switch life
- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
- 3-point mounting pattern speeds installation and simplifies ganging in close quarters
- Plated stationary and movable contacts deliver reliability and long life
- Galvanized steel enclosure offers superior rust protection in outdoor applications, theres also a durable polyester powder coated finish
- Plated blades provide visible confirmation of contact position
- Suitable for class H, K, J or R fuses, where applicable
TG3225 Standards
CSA C22.2 No. 4-04|cUL Listed|Federal Specification W-S-865C|GSA Compliant|NEMA KS1 Rated|Seismic Certified|UL ListedSKU #2400770Part Number #TG3225UNSPSC39122205UPC00783164008562

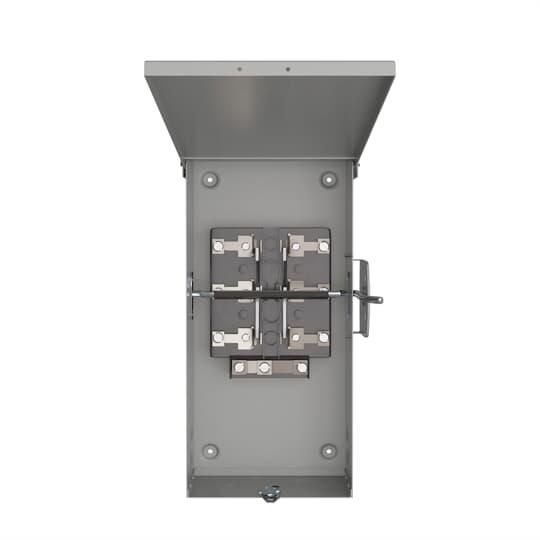

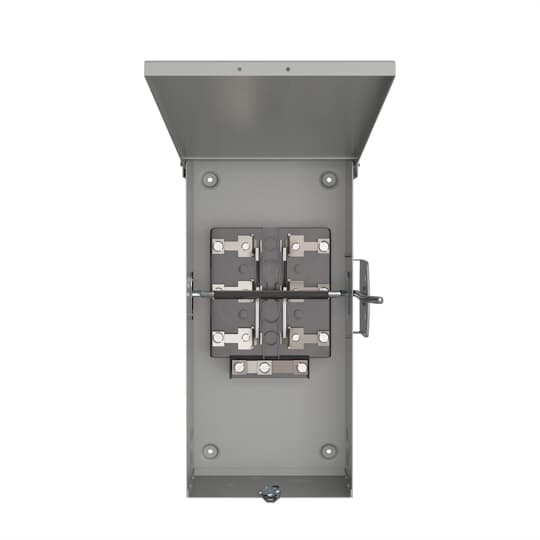

Image provided may only be a representation of final product and may include optional equipment
