Part Number # TG4321R
SKU # 2402189
TG4321R

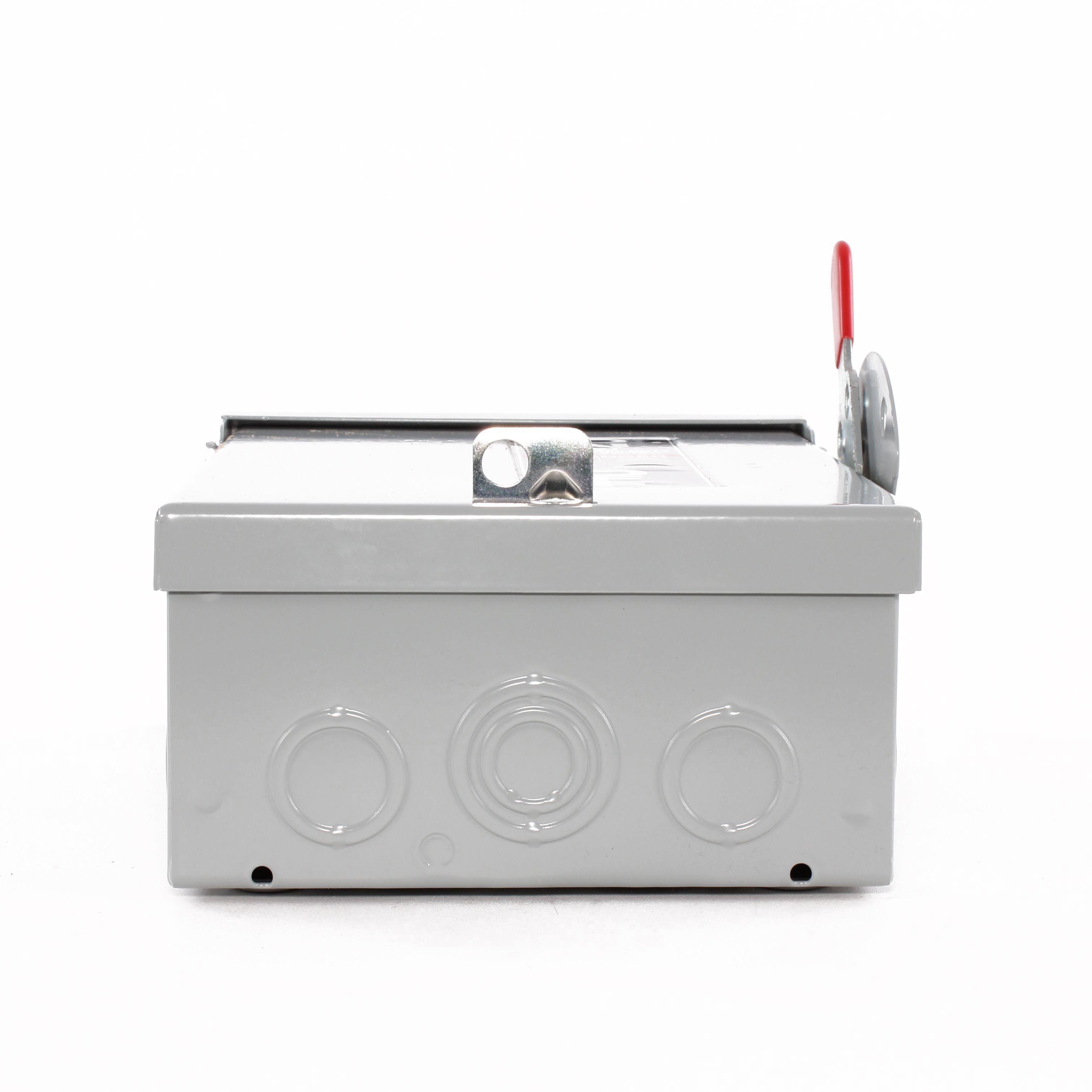

ABB TG4321R Ge Spec-Setter Safety Switch
Part Number # TG4321R
SKU # 2402189
$212.09 / Each
ABB TG4321R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TG4321R |
| SKU #: | 2402189 |
| Actuator Type: | Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 9.78 in H x 6.4 in W x 3.3 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 1.5 hp Standard Fuse/3 hp Time Delay |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 1 |
| Series: | TG Series |
| Short Circuit Current Rating (kA): | 100 kA |
| Temperature Rating (Degrees F): | 60/75 deg C |
| Type: | Fusible General Duty |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164008623 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$212.09 / Each
Quantity:
ABB TG4321R Ge Spec-Setter Safety Switch
Brand: ABB
Part Number: TG4321R
Additional Description: ABB -TG4321R 30A 3P GD N3R 240V FUSIBLE SW
Catalog Description: No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. 30A 3P GD N3R 240V FUSIBLE SW
TG4321R Application
Residential, Light Commercial, Electrical Distribution and Control ApplicationsTG4321R Item Features
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Integral cover interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses, where applicable
- UL listed short circuit rating is 10000 rms symmetrical amps standard
- With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
- UL listed as service entrance equipment when installed in accordance with the national electric code
TG4321R Standards
UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic CertifiedSKU #2402189Part Number #TG4321RUNSPSC39122205UPC00783164008623
Image provided may only be a representation of final product and may include optional equipment
