Brand: ABB
TG4323R

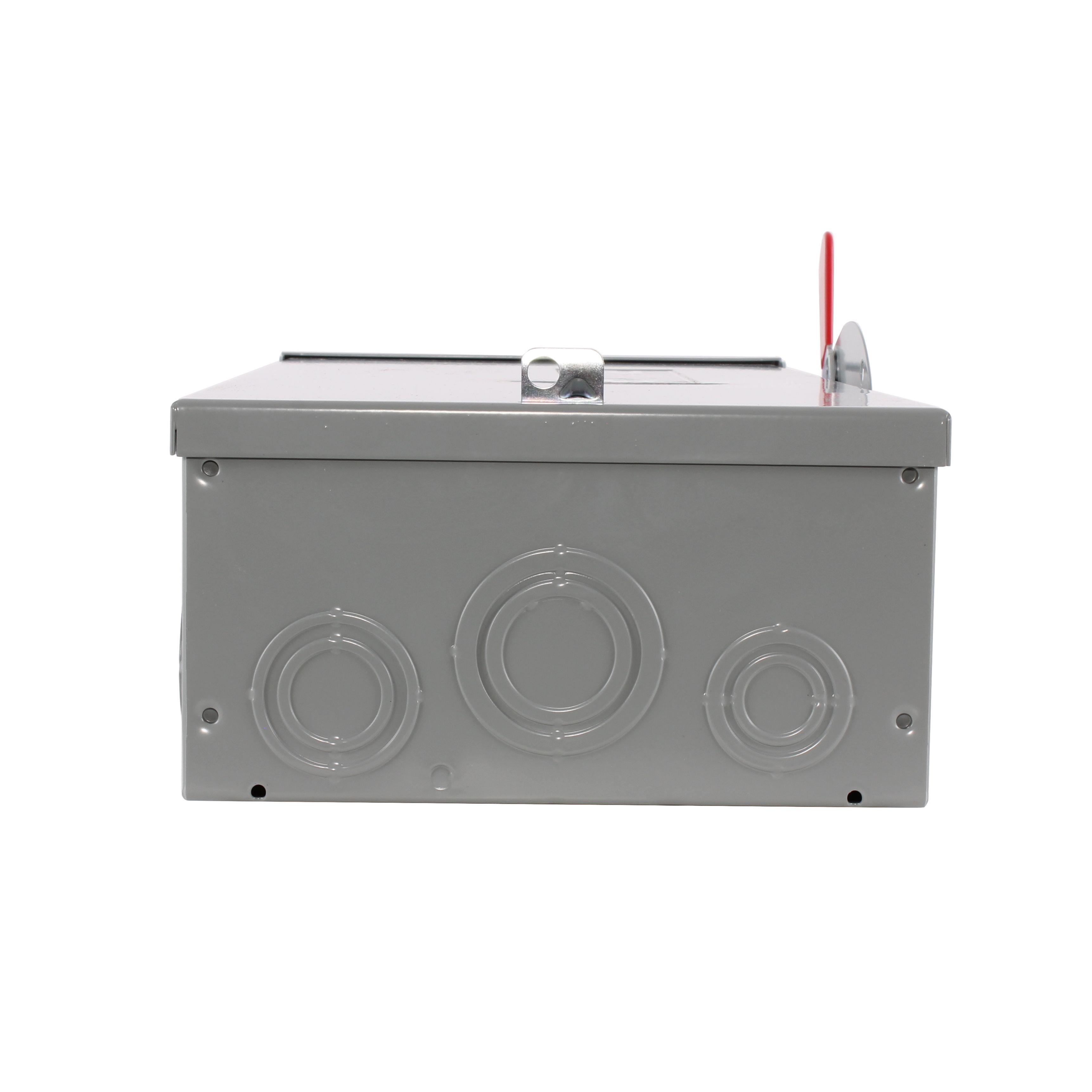

ABB TG4323R Spec-Setter Safety Switch
Part Number # TG4323R
SKU # 2388197
$581.94 / Each
ABB TG4323R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TG4323R |
| SKU #: | 2388197 |
| Actuator Type: | Handle |
| Amperage Rating: | 100 A |
| Dimensions: | 21.05 in H x 9.3 in W x 5 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 7-1/2 hp Standard Fuse/15 hp Time Delay |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 1 |
| Series: | TG Series |
| Short Circuit Current Rating (kA): | 100 kA |
| Temperature Rating (Degrees F): | 60/75 deg C |
| Type: | Fusible General Duty |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164008661 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$581.94 / Each
Quantity:
- GE Spec-Setter Safety Switch, Fusible General Duty, Series: TG Series, 240 V AC, 100 A, 7-1/2 hp Standard Fuse/15 hp Time Delay, 1 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 21.05 in H x 9.3 in W x 5 in D Dimensions, Steel
TG4323R Application
Residential, Light Commercial, Electrical Distribution and Control ApplicationsTG4323R Item Features
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Integral cover interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses, where applicable
- UL listed short circuit rating is 10000 rms symmetrical amps standard
- With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
- UL listed as service entrance equipment when installed in accordance with the national electric code
TG4323R Standards
UL 98|CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS-865C|NEMA KS1-2013|Seismic CertifiedSKU #2388197Part Number #TG4323RUNSPSC39122205UPC00783164008661
