TH4321R

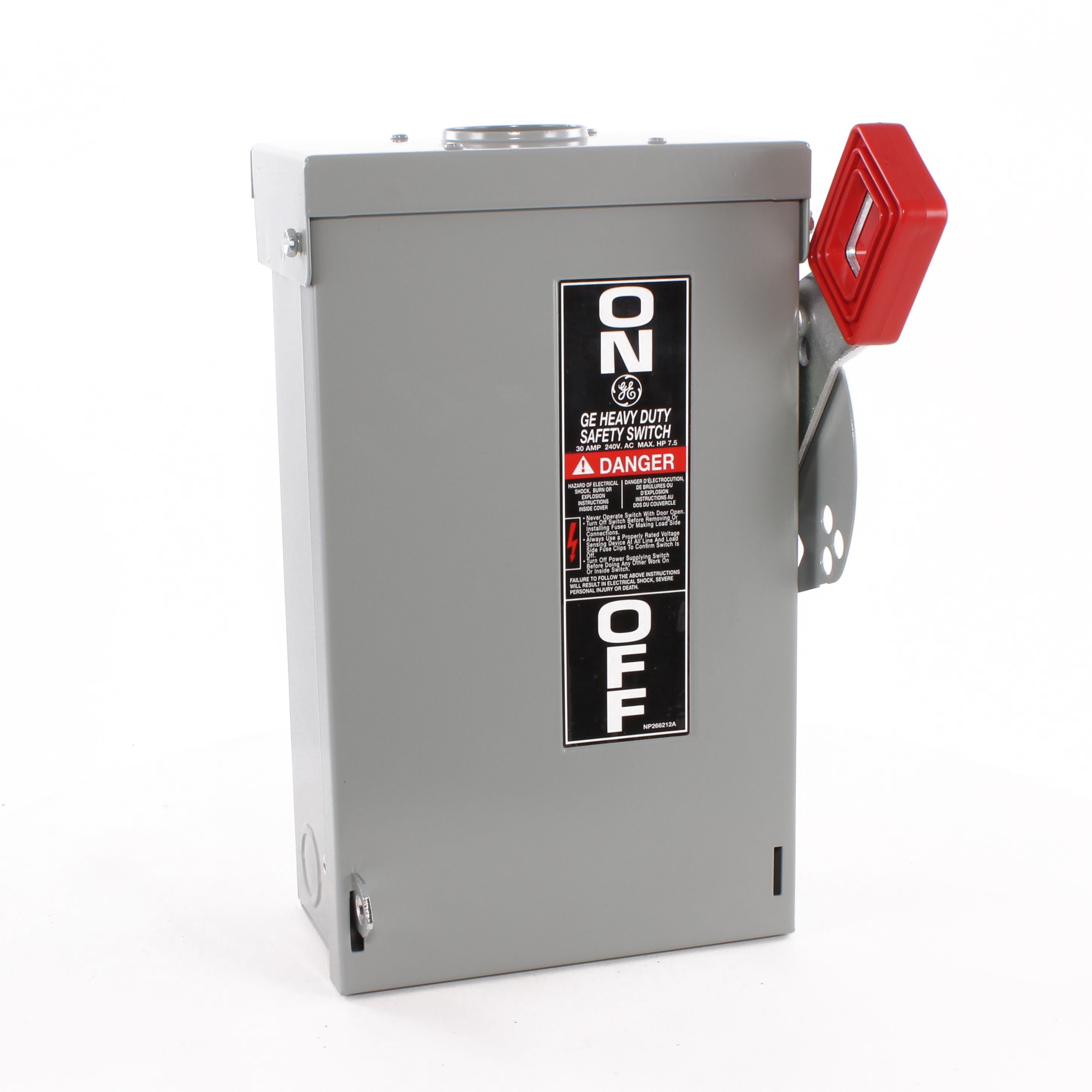

ABB TH4321R Spec-Setter Safety Switch
Part Number # TH4321R
SKU # 2431550
$286.45 / Each
Typical price:$384.00 / Each
ABB TH4321R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TH4321R |
| SKU #: | 2431550 |
| Actuator Type: | Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 6.6 in W x 7.7 in D x 10.5 in H |
| Enclosure Type: | NEMA 3R |
| Finish: | Hot Dipped Galvanized/Powder Coated |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 1-1/2 hp, 3 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 3, 3 ph |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | 60 to 75 deg C |
| Terminal Type: | Line/Load Lug |
| Type: | Fused Heavy Duty |
| Material: | Stainless Steel |
| Mounting type: | 3-Point/Self-Leveling |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164009200 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$286.45 / Each
Typical price:$384.00 / Each
Quantity:
- GE Spec-Setter Safety Switch, Fused Heavy Duty, 240 V AC, 30 A, 1-1/2 hp, 3 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 3R Enclosure, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60 to 75 deg C, 6.6 in W x 7.7 in D x 10.5 in H Dimensions, Stainless Steel, Hot Dipped Galvanized/Powder Coated
TH4321R Application
Commercial, Industrial, Electrical Distribution and Control ApplicationsTH4321R Item Features
- Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
- Coin-proof, defeatable dual interlocks meet all safety inspection requirements
- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
- 3-point mounting pattern speeds installation and simplifies ganging in close quarters
- Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
- Plated blades provide visible confirmation of contact position
- Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses
- 1 hp at 240 VAC standard fuse, 3 hp at 240 VAC standard fuse, 3 hp at 240 VAC time delay, 7 hp at 240 VAC time delay, 5 hp at 250 VDC horsepower rating
TH4321R Standards
CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS865C|Seismic Certified|UL ListedSKU #2431550Part Number #TH4321RUNSPSC39122205UPC00783164009200
