Brand: ABB
TH4323R

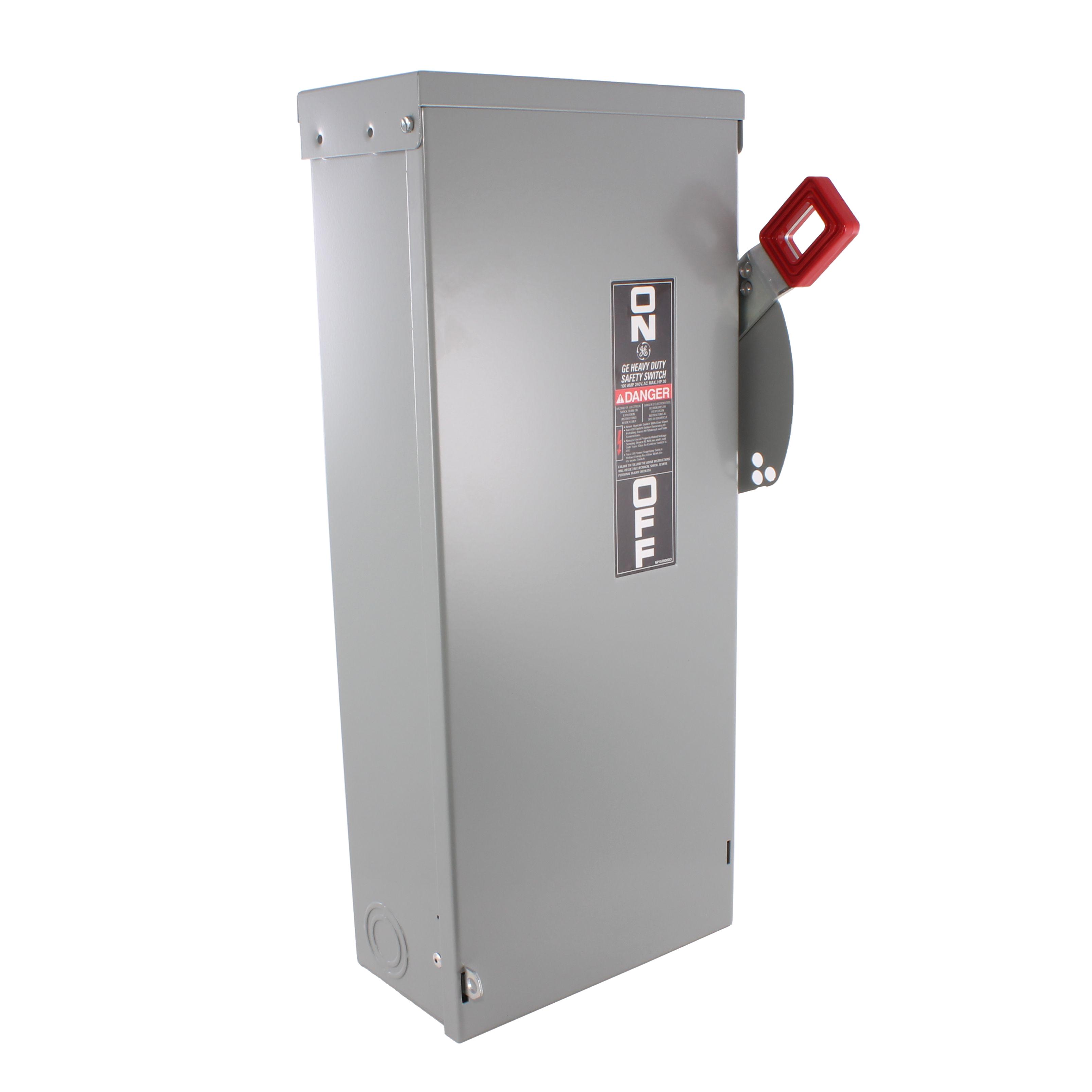

ABB TH4323R Spec-Setter Safety Switch
Part Number # TH4323R
SKU # 2431552
$642.28 / Each
Typical price:$861.00 / Each
ABB TH4323R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TH4323R |
| SKU #: | 2431552 |
| Actuator Type: | Handle |
| Amperage Rating: | 100 A |
| Dimensions: | 10.2 in W x 9.8 in D x 22.1 in H |
| Enclosure Type: | NEMA 3R |
| Finish: | Hot Dipped Galvanized/Powder Coated |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 15 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 3, 3 ph |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | 60 to 75 deg C |
| Terminal Type: | Line/Load Lug |
| Type: | Fused Heavy Duty |
| Material: | Stainless Steel |
| Mounting type: | 3-Point/Self-Leveling |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164009248 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$642.28 / Each
Typical price:$861.00 / Each
Quantity:
- GE Spec-Setter Safety Switch, Fused Heavy Duty, 240 V AC, 100 A, 15 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 3R Enclosure, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60 to 75 deg C, 10.2 in W x 9.8 in D x 22.1 in H Dimensions, Stainless Steel, Hot Dipped Galvanized/Powder Coated
TH4323R Application
Commercial, Industrial, Electrical Distribution and Control ApplicationsTH4323R Item Features
- Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
- Coin-proof, defeatable dual interlocks meet all safety inspection requirements
- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
- 3-point mounting pattern speeds installation and simplifies ganging in close quarters
- Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
- Plated blades provide visible confirmation of contact position
- Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses
- 7 hp at 240 VAC standard fuse, 15 hp at 240 VAC standard fuse, 15 hp at 240 VAC time delay, 30 hp at 240 VAC time delay, 20 hp at 250 VDC horsepower rating
TH4323R Standards
CSA C22.2 No. 4-04|cUL Listed|Federal Specification WS865C|Seismic Certified|UL ListedSKU #2431552Part Number #TH4323RUNSPSC39122205UPC00783164009248
